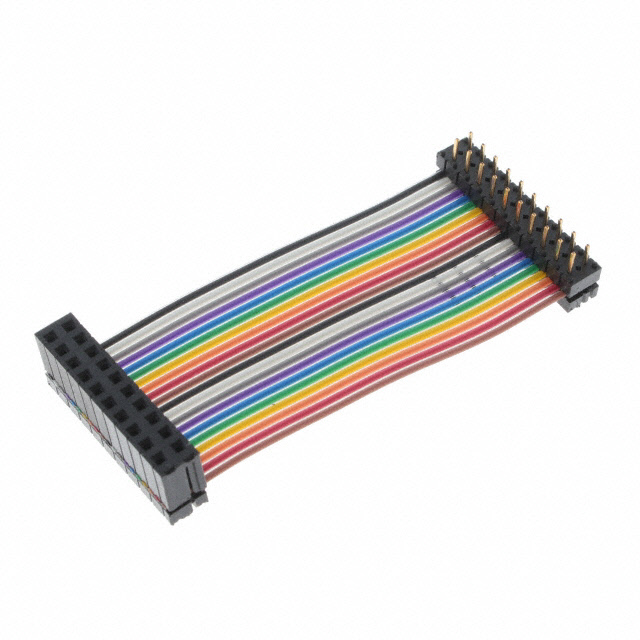

IDMD-10-T-02.50
ActiveSamtec Inc.
CBL ASSY .100"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IDMD-10-T-02.50
ActiveSamtec Inc.
CBL ASSY .100"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IDMD-10-T-02.50 |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Length [x] | 2.5 in |
| Length [x] | 63.5 mm |
| Length [x] | 2.496 in |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.95 | |
| 10 | $ 8.27 | |||
| 25 | $ 7.82 | |||
| 50 | $ 7.54 | |||
| 100 | $ 7.54 | |||
Description
General part information
IDMD-10 Series
20 Position Cable Assembly Rectangular Socket to Plug 0.208' (63.50mm, 2.50")
