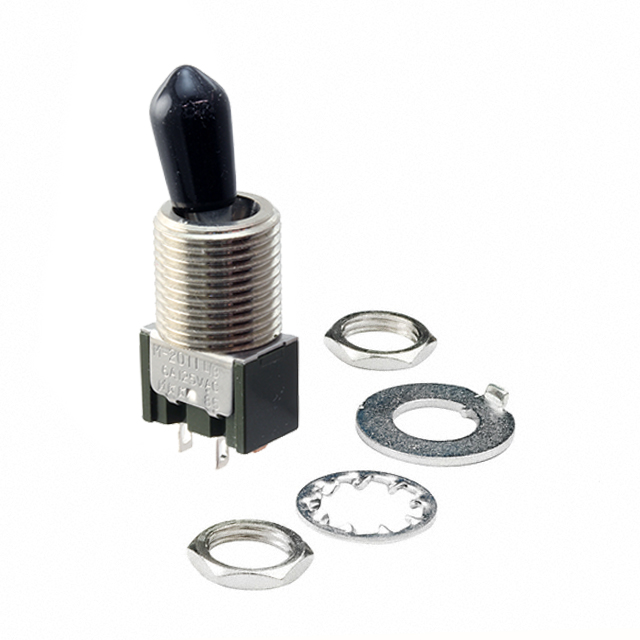

M2011BB1W01-RA

Obsolete

NKK Switches

SWITCH TOGGLE SPST 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPST 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2011BB1W01-RA

Actuator Length [x]	12.3 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round with Cap
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPST
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Black Cap
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Features	Voltage Rating - DC	Voltage Rating - AC	Actuator Material	Circuit	Illumination	Electrical Life	Ingress Protection	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Bushing Thread	Bushing Thread	Actuator Type
NKK Switches M2011BB3W01	Epoxy Sealed Terminals	30 V	125 V	Brass Chrome Plated	SPST	Non-Illuminated	25000 Steps	IP67 - Dust Tight Waterproof	Solder Lug	-30 ░C	85 °C	4 A 6 A	On-Off	11.5 mm	12.5 mm	M12	1 x 1	Standard Round
NKK Switches M2011BB1W01-RA	Black Cap	30 V	125 V	Brass Chrome Plated	SPST	Non-Illuminated	25000 Steps		Solder Lug	-30 ░C	85 °C	4 A 6 A	On-Off	12.3 mm	12.5 mm	M12	1 x 1	Standard Round with Cap
NKK Switches M2011BB1W01	Epoxy Sealed Terminals	30 V	125 V	Brass Chrome Plated	SPST	Non-Illuminated	25000 Steps		Solder Lug	-30 ░C	85 °C	4 A 6 A	On-Off	11.5 mm	12.5 mm	M12	1 x 1	Standard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
