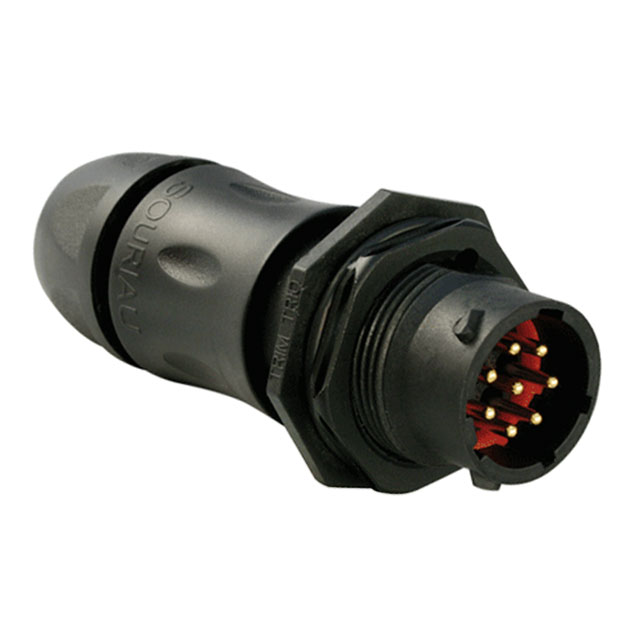

UTS7GJC128P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 8POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

UTS7GJC128P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 8POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UTS7GJC128P	UTS7G Series

Connector Type	Receptacle Housing	Receptacle Housing
Contact Shape	Circular	Circular
Contact Size	16	16
Contact Type	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Housing Color	Black	Black
Ingress Protection	IP68, IP69K	IP68, IP69K
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Note	Contacts Not Included	Contacts Not Included
Number of Positions	8	4 - 12
Number of Positions	-	1
Number of Positions	-	6
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N
Shell Size - Insert	12-8	12-8, 10-4, 14-12
Shell Size - Insert	-	14
Shell Size - Insert	-	7
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

UTS7G Series

CONN RCPT HSNG MALE 8POS PNL MNT

Part	Note	Contact Type	Type	Contact Size	Contact Shape	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Ingress Protection	Mounting Feature	Housing Color	Shielding	Material Flammability Rating	Fastening Type	Number of Positions	Shell Size - Insert	Features	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Souriau-Sunbank by Eaton UTS7GN128P	Contacts Not Included	Crimp	For Male Pins	16	Circular	N	-40 °C	105 ░C	Receptacle Housing	IP68, IP69K	Bulkhead - Front Side Nut	Black	Unshielded	UL94 V-0	Bayonet Lock	8	12-8
Souriau-Sunbank by Eaton UTS7GJC104P	Contacts Not Included	Crimp	For Male Pins	16	Circular	N	-40 °C	105 ░C	Receptacle Housing	IP68, IP69K	Bulkhead - Front Side Nut	Black	Unshielded	UL94 V-0	Bayonet Lock	4	10-4	Backshell
Souriau-Sunbank by Eaton UTS7GN1412P	Contacts Not Included	Crimp	For Male Pins	16	Circular	N	-40 °C	105 ░C	Receptacle Housing	IP68, IP69K	Bulkhead - Front Side Nut	Black	Unshielded	UL94 V-0	Bayonet Lock	12	14-12
Souriau-Sunbank by Eaton UTS7GN104P	Contacts Not Included	Crimp	For Male Pins	16	Circular	N	-40 °C	105 ░C	Receptacle Housing	IP68, IP69K	Bulkhead - Front Side Nut	Black	Unshielded	UL94 V-0	Bayonet Lock	4	10-4
Souriau-Sunbank by Eaton UTS7GN147P	Contacts Not Included	Crimp	For Male Pins	16	Circular	N	-40 °C	105 ░C	Receptacle Housing	IP68, IP69K	Bulkhead - Front Side Nut	Black	Unshielded	UL94 V-0	Bayonet Lock				1	6	14	7
Souriau-Sunbank by Eaton UTS7GJC128P	Contacts Not Included	Crimp	For Male Pins	16	Circular	N	-40 °C	105 ░C	Receptacle Housing	IP68, IP69K	Bulkhead - Front Side Nut	Black	Unshielded	UL94 V-0	Bayonet Lock	8	12-8	Backshell
Souriau-Sunbank by Eaton UTS7GJC1412P	Contacts Not Included	Crimp	For Male Pins	16	Circular	N	-40 °C	105 ░C	Receptacle Housing	IP68, IP69K	Bulkhead - Front Side Nut	Black	Unshielded	UL94 V-0	Bayonet Lock	12	14-12	Backshell
Souriau-Sunbank by Eaton UTS7GJC147P	Contacts Not Included	Crimp	For Male Pins	16	Circular	N	-40 °C	105 ░C	Receptacle Housing	IP68, IP69K	Bulkhead - Front Side Nut	Black	Unshielded	UL94 V-0	Bayonet Lock			Backshell	1	6	14	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 18.44

Description

General part information

UTS7G Series

8 Position Circular Connector Receptacle Housing Panel Mount Backshell

Documents

Technical documentation and resources

No documents available
