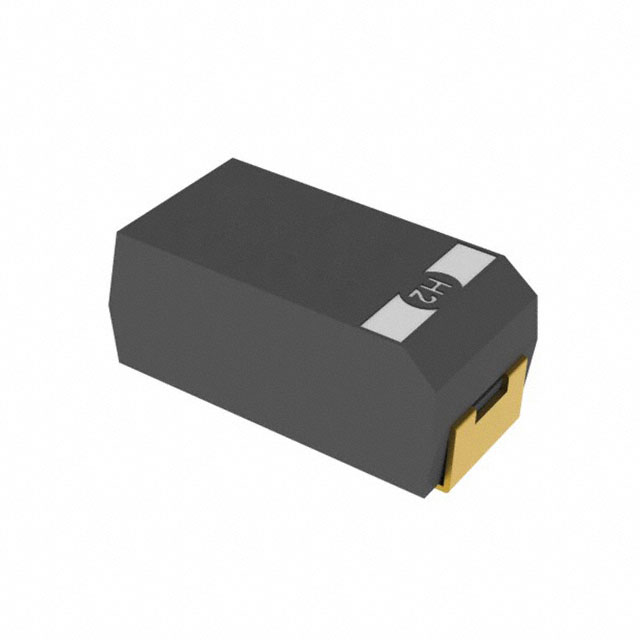

T500X107K016AG61107505

Active

KEMET

CAP TANT 100UF 10% 16V 2917

Search across all available documentation for this part.

Active

KEMET

CAP TANT 100UF 10% 16V 2917

Technical Specifications

Parameters and characteristics for this part

Specification	T500X107K016AG61107505

Capacitance	100 µF
ESR (Equivalent Series Resistance)	250 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.169 "
Height - Seated (Max) [Max]	4.3 mm
Lifetime @ Temp.	1000 Hrs
Manufacturer Size Code	X
Mounting Type	Surface Mount
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	10 %
Type	Molded
Voltage - Rated	16 V

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Features	Type	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Mounting Type	Manufacturer Size Code	Tolerance	Capacitance	Failure Rate
KEMET T500X107K016AG61107505	0.169 "	4.3 mm	-55 °C	200 °C	16 V	4.3 mm	0.287 "	7.3 mm	0.169 "	7343 Metric	2917	General Purpose	Molded	1000 Hrs	250 mOhm	Surface Mount	X	10 %	100 µF
KEMET T500X227K010AG61107505	0.169 "	4.3 mm	-55 °C	200 °C	10 V	4.3 mm	0.287 "	7.3 mm	0.169 "	7343 Metric	2917	General Purpose	Molded	1000 Hrs	250 mOhm	Surface Mount	X	10 %	220 µF
KEMET T500X227K010BG6110	0.169 "	4.3 mm	-55 °C	200 °C	10 V	4.3 mm	0.287 "	7.3 mm	0.169 "	7343 Metric	2917	General Purpose	Molded	1000 Hrs	250 mOhm	Surface Mount	X	10 %	220 µF	B (0.1%)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF Molded Tantalum Capacitors 16 V 2917 (7343 Metric) 250mOhm
