395-015-541-102
ActiveEDAC Inc.

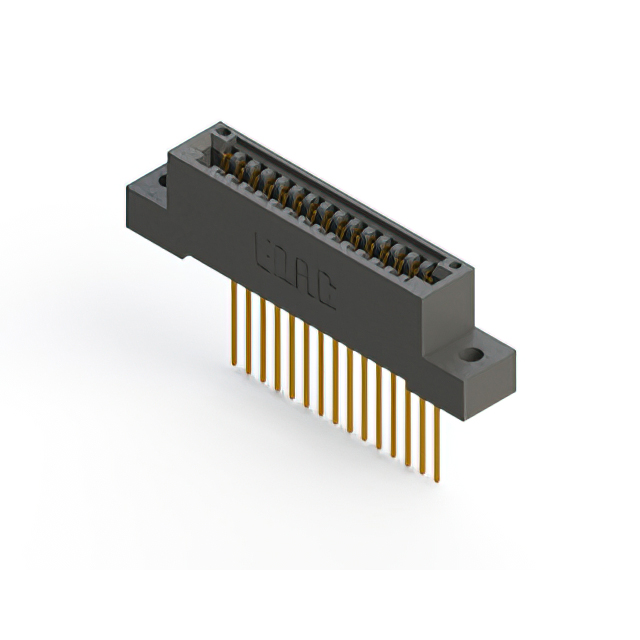

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-015-541-102
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-015-541-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
395-015 Series
...
| Part | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Pitch [x] | Pitch [x] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions/Bay/Row [custom] | Termination Rows | Termination | Read Out | Mounting Type | Gender | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 15 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 15 | 1 | Wire Wrap | Single | Through Hole | Female | |||
EDAC Inc. | 15 | 2.54 mm | 0.1 in | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 15 | 1 | Wire Wrap | Single | Through Hole | Female | ||||||
EDAC Inc. | 15 | 4-40 Threaded Insert Top Mount Opening | 2.54 mm | 0.1 in | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 15 | 1 | Solder | Single | Through Hole | Female | |||||
EDAC Inc. | 15 | 4-40 Threaded Insert Top Mount Opening | 2.54 mm | 0.1 in | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 15 | 1 | Solder | Single | Through Hole | Female | Card Guides | ||||
EDAC Inc. | 15 | 2.95 mm | 0.116 in | Floating Bobbin Top Mount Opening | 2.54 mm | 0.1 in | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 15 | 1 | Solder | Single | Through Hole Right Angle | Female | |||
EDAC Inc. | 15 | 2.95 mm | 0.116 in | Floating Bobbin Top Mount Opening | 2.54 mm | 0.1 in | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 15 | 1 | Solder | Single | Through Hole | Female | |||
EDAC Inc. | 15 | 4-40 Threaded Insert Top Mount Opening | 2.54 mm | 0.1 in | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 15 | 1 | Wire Wrap | Single | Through Hole | Female | Card Guides | ||||
EDAC Inc. | 15 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 15 | 1 | Solder | Single | Through Hole Right Angle | Female | |||
EDAC Inc. | 15 | Side Mount Opening Unthreaded | 2.54 mm | 0.1 in | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 15 | 1 | Wire Wrap | Single | Through Hole | Female | 3.25 mm | 0.128 in | |||
EDAC Inc. | 15 | M3 Threaded Insert Top Mount Opening | 2.54 mm | 0.1 in | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 15 | 1 | Wire Wrap | Single | Through Hole | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
