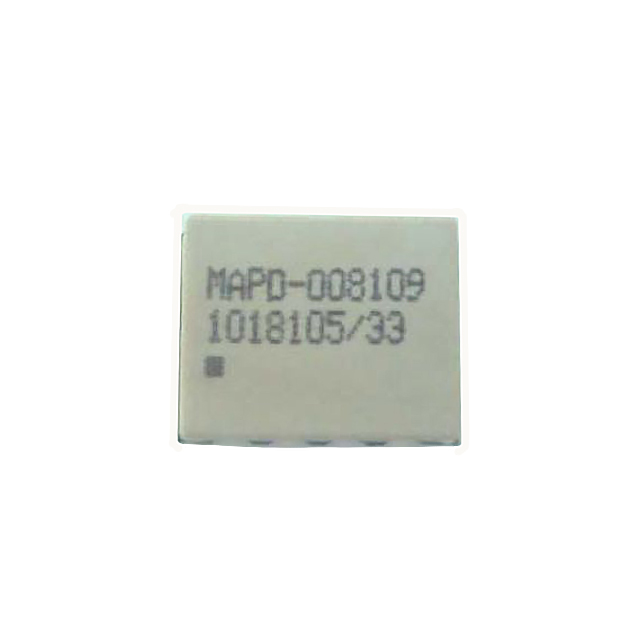

MAPD-008109-C30040
ActiveMACOM Technology Solutions
3 WAY POWER DIVIDER, 0 DEG, SM-4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAPD-008109-C30040
ActiveMACOM Technology Solutions
3 WAY POWER DIVIDER, 0 DEG, SM-4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAPD-008109-C30040 |
|---|---|
| Frequency [Max] | 200 MHz |
| Frequency [Min] | 5 MHz |
| Package / Case | SM-4 |
| Size / Dimension [x] | 0.49 in |
| Size / Dimension [x] | 12.44 mm |
| Size / Dimension [y] | 0.37 " |
| Size / Dimension [y] | 9.39 mm |
| Size / Dimension [z] | 0.25 " |
| Size / Dimension [z] | 6.35 mm |
| Specifications | 12 pin |
| Specifications [Max] | 1 °C |
| Specifications [Min] | 33 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.39 | |
| 10 | $ 5.71 | |||
| 25 | $ 5.14 | |||
| 100 | $ 4.68 | |||
| 250 | $ 4.22 | |||
| Digi-Reel® | 1 | $ 6.39 | ||
| 10 | $ 5.71 | |||
| 25 | $ 5.14 | |||
| 100 | $ 4.68 | |||
| 250 | $ 4.22 | |||
| Tape & Reel (TR) | 500 | $ 3.45 | ||
| 1000 | $ 3.28 | |||
| 1500 | $ 3.20 | |||
| 2500 | $ 3.10 | |||
Description
General part information
MAPD-008109 Series
RF Power Divider 200 MHz ~ 5 MHz Isolation (Min) 33dB, 12dB Return Loss, ±1°C Imbalance (Max) SM-4
