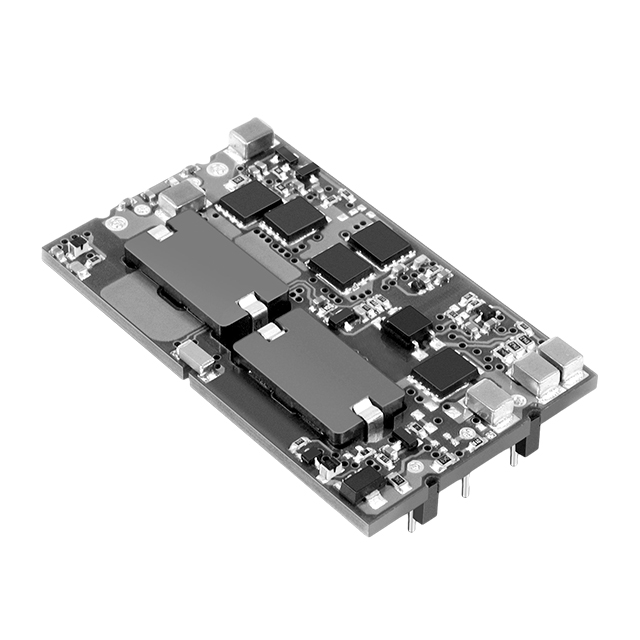

ULQ-3.3/20-D24P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 66W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ULQ-3.3/20-D24P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 66W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ULQ-3.3/20-D24P-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 20 A |
| Features | OVP, Remote On/Off, SCP, OTP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1/4 Brick, 8-DIP Module |
| Size / Dimension [x] | 56.4 mm |
| Size / Dimension [x] | 2.22 in |
| Size / Dimension [y] | 34.3 mm |
| Size / Dimension [y] | 1.35 in |
| Size / Dimension [z] | 9.53 mm |
| Size / Dimension [z] | 0.38 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ULQ-3.3 Series
DC DC CONVERTER 3.3V 66W
| Part | Features | Number of Outputs | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Voltage - Output 1 | Control Features | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Type | Package / Case | Voltage - Isolation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. ULQ-3.3/20-D24P-C | OTP, OVP, Remote On/Off, SCP, UVLO | 1 | 18 V | 34.3 mm | 9.53 mm | 0.38 in | 56.4 mm | 1.35 in | 2.22 in | 36 V | 20 A | 3.3 V | Active High, Enable | ITE (Commercial) | 85 °C | -40 °C | Isolated Module | 1/4 Brick, 8-DIP Module | 2000 V | Through Hole |
Description
General part information
ULQ-3.3 Series
Isolated Module DC DC Converter 1 Output 3.3V 20A 18V - 36V Input
