SJA1105 Series

Part	Protocol	Standards	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Package Width	Package Length	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Interface	Package / Case	Qualification	Function	Grade	Current - Supply	Supplied Contents	Utilized IC / Part	Contents	Type
NXP USA Inc. SJA1105PELY	Ethernet	IEEE 802.3	125 °C	-40 °C	159-LFBGA	12 mm	12 mm	3.6 V	1.65 V	SPI	159-LFBGA	AEC-Q100	Switch	Automotive	3.5 mA
NXP USA Inc. SJA1105RELY	Ethernet	IEEE 802.3	125 °C	-40 °C	159-LFBGA	12 mm	12 mm	3.6 V	1.65 V	SPI	159-LFBGA	AEC-Q100	Switch	Automotive	3.5 mA
NXP USA Inc. SJA1105QELY	Ethernet	IEEE 802.3	125 °C	-40 °C	159-LFBGA	12 mm	12 mm	3.6 V	1.65 V	SPI	159-LFBGA	AEC-Q100	Switch	Automotive	3.5 mA

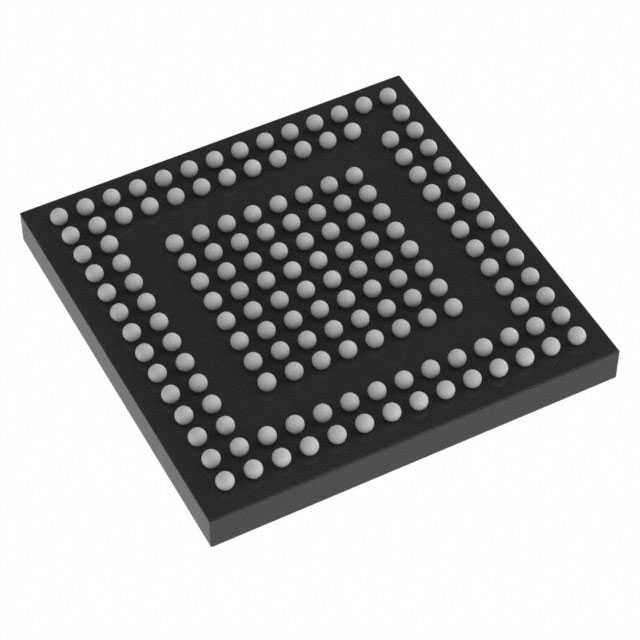

NXP USA Inc. SJA1105ELY	Ethernet	IEEE 802.3	125 °C	-40 °C	159-LFBGA	12 mm	12 mm	3.6 V	1.65 V	SPI	159-LFBGA	AEC-Q100	Switch	Automotive	3.5 mA
NXP USA Inc. SJA1105SELY	Ethernet	IEEE 802.3	125 °C	-40 °C	159-LFBGA	12 mm	12 mm	3.6 V	1.65 V	SPI	159-LFBGA	AEC-Q100	Switch	Automotive	3.5 mA
NXP USA Inc. SJA1105SMBEVM													Ethernet			Board(s)	SJA1105S	Board	Interface

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
