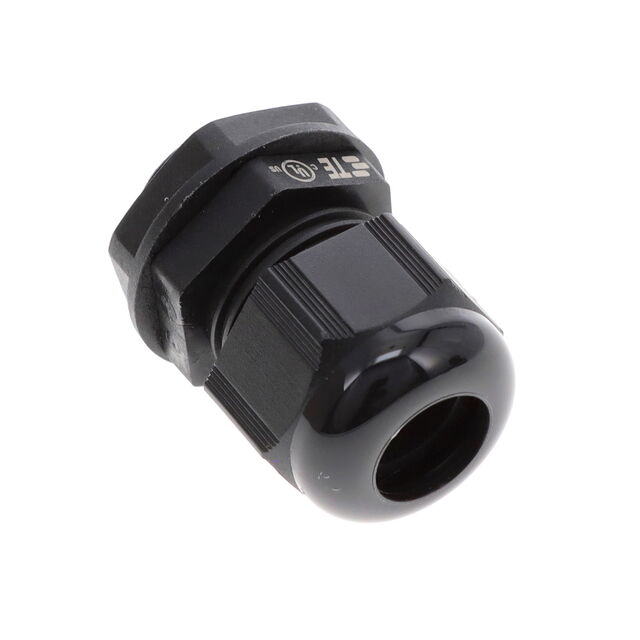

EP-SGL-M20-BL-C

Active

TE Connectivity ENTRELEC

CABLE GLAND 6-12MM M20 POLYAMIDE

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

CABLE GLAND 6-12MM M20 POLYAMIDE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EP-SGL-M20-BL-C	EP-SGL-M20 Series

Color	Black	Gray, Black
Includes	Seal	Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	-	14 mm
Outside Cable Diameter (Max)	-	0.551 "
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm	6 - 10 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in	0.236 - 0.394 in
Thread Length	10 mm	10 mm
Thread Length	0.394 in	0.394 in
Thread Size	M20x1.5	M20x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 6-12MM M20 POLYAMIDE

Part	Thread Size	Thread Length	Thread Length	Color	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
TE Connectivity ENTRELEC EP-SGL-M20-GR-C	M20x1.5	10 mm	0.394 in	Gray	Cable Gland	6 mm	0.236 in	IP68 - Dust Tight, Waterproof	100 °C	-20 C	Seal	0.472 in	12 mm
TE Connectivity ENTRELEC EP-SGL-M20-GR-H	M20x1.5	10 mm	0.394 in	Gray	Cable Gland	10 mm	0.394 in	IP68 - Dust Tight, Waterproof	100 °C	-20 C	Seal			14 mm	0.551 "
TE Connectivity ENTRELEC EP-SGL-M20-BL-C	M20x1.5	10 mm	0.394 in	Black	Cable Gland	6 mm	0.236 in	IP68 - Dust Tight, Waterproof	100 °C	-20 C	Seal	0.472 in	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 M20x1.5 Black
