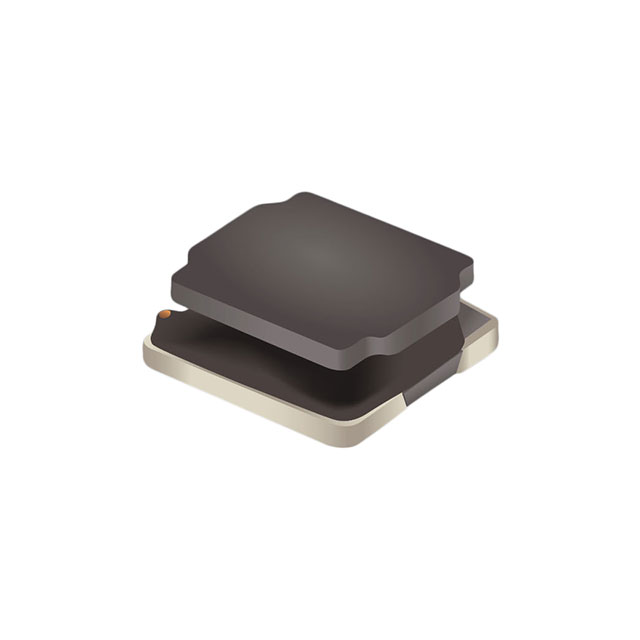

SRN3012TA-150M
ActiveBourns Inc.
FIXED IND 15UH 740MA 386MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRN3012TA-150M
ActiveBourns Inc.
FIXED IND 15UH 740MA 386MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRN3012TA-150M |
|---|---|
| Current - Saturation (Isat) | 620 mA |
| Current Rating (Amps) | 0.74 A |
| DC Resistance (DCR) | 386 mOhm |
| Frequency - Self Resonant | 35 MHz |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Q @ Freq | 20, 1 MHz |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.23 | |||
| 100 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.23 | |||
| 100 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 2000 | $ 0.14 | ||
| 4000 | $ 0.14 | |||
| 6000 | $ 0.13 | |||
| 10000 | $ 0.13 | |||
| 14000 | $ 0.12 | |||
| 20000 | $ 0.12 | |||
| 50000 | $ 0.11 | |||
Description
General part information
SRN3012TA Series
15 µH Shielded Drum Core, Wirewound Inductor 740 mA 386mOhm 1212 (3030 Metric)
