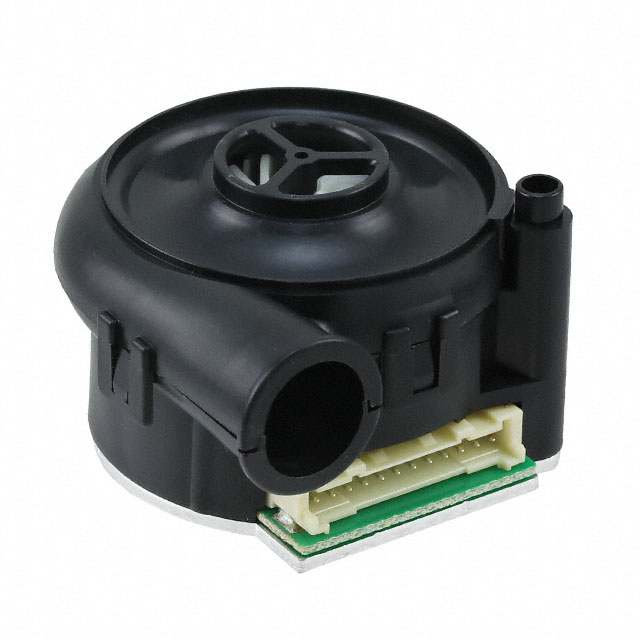

TF037F-2000-F

Active

Nidec Components Corporation

FAN BLOWER 53.8X34.3MM 24VDC

Search across all available documentation for this part.

Active

Nidec Components Corporation

FAN BLOWER 53.8X34.3MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	TF037F-2000-F

Air Flow	0.098 mł/min
Air Flow	3.5 CFM
Bearing Type	Aerodynamic
Current Rating (Amps)	0.67 A
Fan Type	Blower, Centrifugal
Noise	65 dB
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	0 °C
Operating Temperature [Min]	0 °C
Power (Watts)	16.1 W
RPM	31000 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	53.8 mm
Size / Dimension [z]	50.5 mm
Static Pressure	8.03 in H2O
Static Pressure	2000 Pa
Termination	12 Position Rectangular Connector
Voltage - Rated	24 VDC
Voltage Range [Max]	24 V
Voltage Range [Min]	12 VDC
Weight	72.12 g
Weight	0.159 lb

FAN BLOWER 53.8X34.3MM 24VDC

Part	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Weight	Weight	Voltage - Rated	Termination	Current Rating (Amps)	Fan Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Noise	Air Flow	Air Flow	Bearing Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]
Nidec Components Corporation TF037F-2000-F	24 V	12 VDC	8.03 in H2O	2000 Pa	72.12 g	0.159 lb	24 VDC	12 Position Rectangular Connector	0.67 A	Blower, Centrifugal	16.1 W	50 °C	0 °C	0 °C	50 °C	31000 RPM	65 dB	0.098 mł/min	3.5 CFM	Aerodynamic	Rectangular/Rounded	53.8 mm	50.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 24VDC Rectangular/Rounded - 53.80mm L x 50.5mm H Aerodynamic 3.5 CFM (0.098m³/min) 12 Position Rectangular Connector
