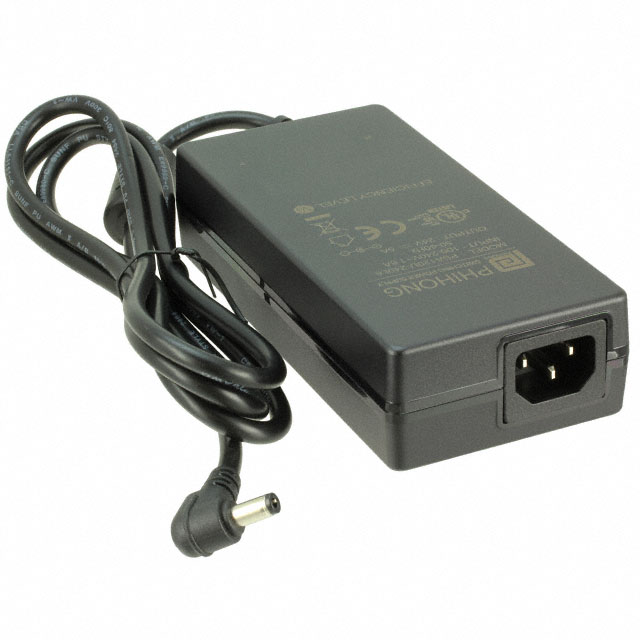

Specification	PSA120U-240L6

Applications	ITE (Commercial)
Approval Agency	cULus, GS, CE
Cord Length	59 in
Current - Output (Max)	5 A
Efficiency	Level VI, CoC Tier 2
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	150 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	Barrel Plug R/A
Output Connector I.D.	2.5 mm
Output Connector Length	10 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	120 W
Region Utilized	International
Size / Dimension Height	1.46 in
Size / Dimension Length	5.98 in
Size / Dimension Width	2.87 in
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	24 V
Weight	1.8 lbs

PSA120U Series

Part	Voltage - Output	Form	Output Connector Length	Output Connector	Output Connector I.D.	Output Connector O.D.	Power (Watts)	Efficiency	Polarization	Current - Output (Max)	Input Connector	Applications	Region Utilized	Cord Length	Operating Temperature (Max)	No Load Power Consumption (Max)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Approval Agency	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Input Type	Weight
Phihong USA PSA120U-560L6	56 V	Desktop (Class I)	10 mm	Barrel Plug R/A	2.5 mm	5.5 mm	120 W	CoC Tier 2 Level VI	Positive Center	2.14 A	IEC 320-C14	ITE (Commercial)	International	59 in	40 °C	150 mW	90 V	264 V	CE cULus GS	2.87 in	5.98 in	1.46 in	Cord (Sold Separately)	1.8 lbs
Phihong USA PSA120U-120L6	12 V	Desktop (Class I)		4 Pin Power DIN			108 W	CoC Tier 2 Level VI		9 A	IEC 320-C14	ITE (Commercial)	International	39.4 in	40 °C	150 mW	90 V	264 V	cULus GS	2.87 in	5.98 in	1.46 in	Cord (Sold Separately)	1.8 lbs
Phihong USA PSA120U-240L6	24 V	Desktop (Class I)	10 mm	Barrel Plug R/A	2.5 mm	5.5 mm	120 W	CoC Tier 2 Level VI	Positive Center	5 A	IEC 320-C14	ITE (Commercial)	International	59 in	40 °C	150 mW	90 V	264 V	CE cULus GS	2.87 in	5.98 in	1.46 in	Cord (Sold Separately)	1.8 lbs
Phihong USA PSA120U-480L6	48 V	Desktop (Class I)	10 mm	Barrel Plug R/A	2.5 mm	5.5 mm	120 W	CoC Tier 2 Level VI	Positive Center	2.5 A	IEC 320-C14	ITE (Commercial)	International	59 in	40 °C	150 mW	90 V	264 V	CE cULus GS	2.87 in	5.98 in	1.46 in	Cord (Sold Separately)	1.8 lbs
