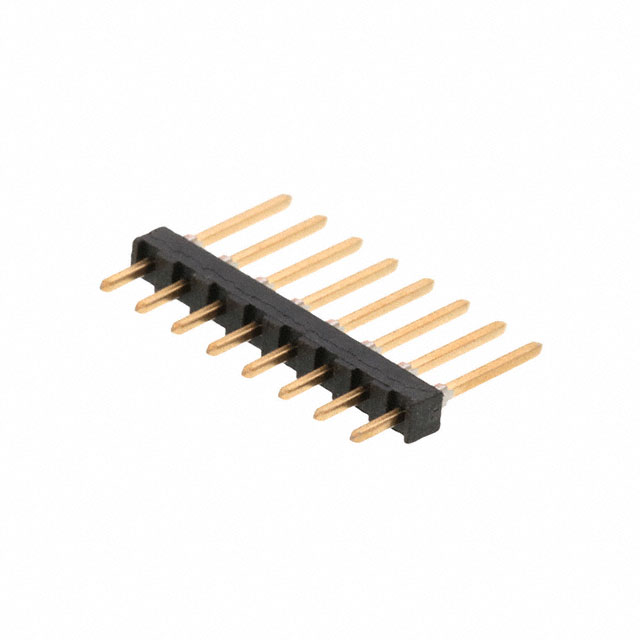

87224-8
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87224-8
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87224-8 | 87224 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Length - Mating [x] | 0.318 " | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post [x] | 3.18 mm | 3.18 mm |
| Contact Length - Post [x] | 0.125 in | 0.125 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.09 in | 0.09 in |
| Insulation Height | 2.29 mm | 2.29 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 8 | 1 - 40 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 13.55 mm | 13.55 mm |
| Overall Contact Length | 0.533 in | 0.533 in |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
87224 Series
CONN HEADER VERT 4POS 2.54MM
| Part | Current Rating (Amps) | Fastening Type | Connector Type | Insulation Material | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Type | Mounting Type | Number of Rows | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Material Flammability Rating | Contact Finish - Post | Contact Finish - Mating | Style | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Insulation Color | Number of Positions | Overall Contact Length | Overall Contact Length | Contact Shape | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87224-4 | 3 A | Push-Pull | Header | Thermoplastic | 0.318 " | 8.08 mm | Male Pin | Through Hole | 1 | All | 0.09 in | 2.29 mm | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm | 15 µin | 0.38 µm | Unshrouded | UL94 V-0 | Gold | Gold | Board to Board, Cable | Flash | -65 ░C | 105 ░C | Phosphor Bronze | Black | 4 | 13.55 mm | 0.533 in | Square | Solder |
TE Connectivity AMP Connectors 87224-1 | 3 A | Push-Pull | Header | Thermoplastic | 0.318 " | 8.08 mm | Male Pin | Through Hole | 1 | All | 0.09 in | 2.29 mm | 3.18 mm | 0.125 in | 15 µin | 0.38 µm | Unshrouded | UL94 V-0 | Gold | Gold | Board to Board, Cable | Flash | -65 ░C | 105 ░C | Phosphor Bronze | Black | 1 | 13.55 mm | 0.533 in | Square | Solder | ||
TE Connectivity AMP Connectors 87224-6 | 3 A | Push-Pull | Header | Thermoplastic | 0.318 " | 8.08 mm | Male Pin | Through Hole | 1 | All | 0.09 in | 2.29 mm | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm | 15 µin | 0.38 µm | Unshrouded | UL94 V-0 | Gold | Gold | Board to Board, Cable | Flash | -65 ░C | 105 ░C | Phosphor Bronze | Black | 6 | 13.55 mm | 0.533 in | Square | Solder |
TE Connectivity AMP Connectors 2-87224-0 | 3 A | Push-Pull | Header | Thermoplastic | 0.318 " | 8.08 mm | Male Pin | Through Hole | 1 | All | 0.09 in | 2.29 mm | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm | 15 µin | 0.38 µm | Unshrouded | UL94 V-0 | Gold | Gold | Board to Board, Cable | Flash | -65 ░C | 105 ░C | Phosphor Bronze | Black | 20 | 13.55 mm | 0.533 in | Square | Solder |
TE Connectivity AMP Connectors 1-87224-4 | 3 A | Push-Pull | Header | Thermoplastic | 0.318 " | 8.08 mm | Male Pin | Through Hole | 1 | All | 0.09 in | 2.29 mm | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm | 15 µin | 0.38 µm | Unshrouded | UL94 V-0 | Gold | Gold | Board to Board, Cable | Flash | -65 ░C | 105 ░C | Phosphor Bronze | Black | 14 | 13.55 mm | 0.533 in | Square | Solder |
TE Connectivity AMP Connectors 87224-8 | 3 A | Push-Pull | Header | Thermoplastic | 0.318 " | 8.08 mm | Male Pin | Through Hole | 1 | All | 0.09 in | 2.29 mm | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm | 15 µin | 0.38 µm | Unshrouded | UL94 V-0 | Gold | Gold | Board to Board, Cable | Flash | -65 ░C | 105 ░C | Phosphor Bronze | Black | 8 | 13.55 mm | 0.533 in | Square | Solder |
TE Connectivity AMP Connectors 87224-3 | 3 A | Push-Pull | Header | Thermoplastic | 0.318 " | 8.08 mm | Male Pin | Through Hole | 1 | All | 0.09 in | 2.29 mm | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm | 15 µin | 0.38 µm | Unshrouded | UL94 V-0 | Gold | Gold | Board to Board, Cable | Flash | -65 ░C | 105 ░C | Phosphor Bronze | Black | 13.55 mm | 0.533 in | Square | Solder | |
TE Connectivity AMP Connectors 2-87224-5 | 3 A | Push-Pull | Header | Thermoplastic | 0.318 " | 8.08 mm | Male Pin | Through Hole | 1 | All | 0.09 in | 2.29 mm | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm | 15 µin | 0.38 µm | Unshrouded | UL94 V-0 | Gold | Gold | Board to Board, Cable | Flash | -65 ░C | 105 ░C | Phosphor Bronze | Black | 13.55 mm | 0.533 in | Square | Solder | |
TE Connectivity AMP Connectors 2-87224-6 | 3 A | Push-Pull | Header | Thermoplastic | 0.318 " | 8.08 mm | Male Pin | Through Hole | 1 | All | 0.09 in | 2.29 mm | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm | 15 µin | 0.38 µm | Unshrouded | UL94 V-0 | Gold | Gold | Board to Board, Cable | Flash | -65 ░C | 105 ░C | Phosphor Bronze | Black | 26 | 13.55 mm | 0.533 in | Square | Solder |
TE Connectivity AMP Connectors 87224-2 | 3 A | Push-Pull | Header | Thermoplastic | 0.318 " | 8.08 mm | Male Pin | Through Hole | 1 | All | 0.09 in | 2.29 mm | 3.18 mm | 0.125 in | 0.1 in | 2.54 mm | 15 µin | 0.38 µm | Unshrouded | UL94 V-0 | Gold | Gold | Board to Board, Cable | Flash | -65 ░C | 105 ░C | Phosphor Bronze | Black | 2 | 13.55 mm | 0.533 in | Square | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.81 | |
| 10 | $ 2.50 | |||
| 200 | $ 2.26 | |||
| 600 | $ 2.04 | |||
| 1000 | $ 1.83 | |||
| 5000 | $ 1.61 | |||
Description
General part information
87224 Series
Connector Header Through Hole 8 position 0.100" (2.54mm)
