87224-4

Active

TE Connectivity AMP Connectors

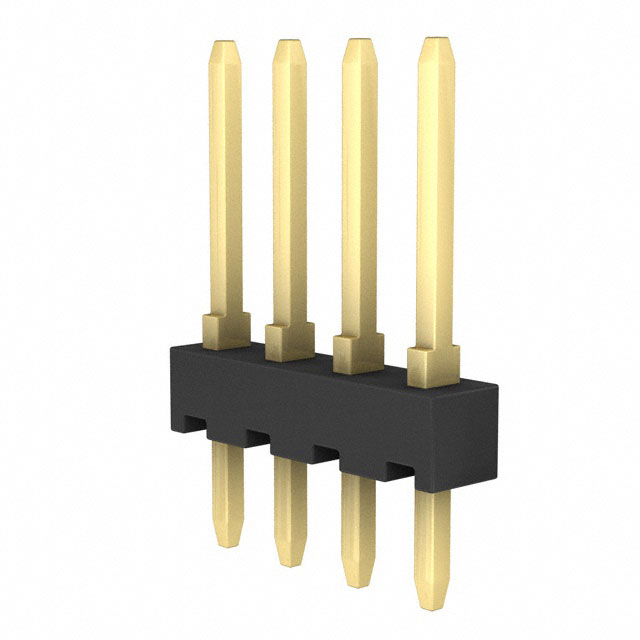

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

87224-4

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20000	$ 0.77

Description

General part information

87224 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87224-4	87224 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.09 in	0.09 in
Insulation Height	2.29 mm	2.29 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	1 - 40
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	13.55 mm	13.55 mm
Overall Contact Length	0.533 in	0.533 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87224 Series

CONN HEADER VERT 4POS 2.54MM

Part	Current Rating (Amps)	Fastening Type	Connector Type	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Mounting Type	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Material Flammability Rating	Contact Finish - Post	Contact Finish - Mating	Style	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Color	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Shape	Termination
TE Connectivity AMP Connectors 87224-4	3 A	Push-Pull	Header	Thermoplastic	0.318 "	8.08 mm	Male Pin	Through Hole	1	All	0.09 in	2.29 mm	3.18 mm	0.125 in	0.1 in	2.54 mm	15 µin	0.38 µm	Unshrouded	UL94 V-0	Gold	Gold	Board to Board, Cable	Flash	-65 ░C	105 ░C	Phosphor Bronze	Black	4	13.55 mm	0.533 in	Square	Solder
TE Connectivity AMP Connectors 87224-1	3 A	Push-Pull	Header	Thermoplastic	0.318 "	8.08 mm	Male Pin	Through Hole	1	All	0.09 in	2.29 mm	3.18 mm	0.125 in			15 µin	0.38 µm	Unshrouded	UL94 V-0	Gold	Gold	Board to Board, Cable	Flash	-65 ░C	105 ░C	Phosphor Bronze	Black	1	13.55 mm	0.533 in	Square	Solder
TE Connectivity AMP Connectors 87224-6	3 A	Push-Pull	Header	Thermoplastic	0.318 "	8.08 mm	Male Pin	Through Hole	1	All	0.09 in	2.29 mm	3.18 mm	0.125 in	0.1 in	2.54 mm	15 µin	0.38 µm	Unshrouded	UL94 V-0	Gold	Gold	Board to Board, Cable	Flash	-65 ░C	105 ░C	Phosphor Bronze	Black	6	13.55 mm	0.533 in	Square	Solder
TE Connectivity AMP Connectors 2-87224-0	3 A	Push-Pull	Header	Thermoplastic	0.318 "	8.08 mm	Male Pin	Through Hole	1	All	0.09 in	2.29 mm	3.18 mm	0.125 in	0.1 in	2.54 mm	15 µin	0.38 µm	Unshrouded	UL94 V-0	Gold	Gold	Board to Board, Cable	Flash	-65 ░C	105 ░C	Phosphor Bronze	Black	20	13.55 mm	0.533 in	Square	Solder
TE Connectivity AMP Connectors 1-87224-4	3 A	Push-Pull	Header	Thermoplastic	0.318 "	8.08 mm	Male Pin	Through Hole	1	All	0.09 in	2.29 mm	3.18 mm	0.125 in	0.1 in	2.54 mm	15 µin	0.38 µm	Unshrouded	UL94 V-0	Gold	Gold	Board to Board, Cable	Flash	-65 ░C	105 ░C	Phosphor Bronze	Black	14	13.55 mm	0.533 in	Square	Solder
TE Connectivity AMP Connectors 87224-8	3 A	Push-Pull	Header	Thermoplastic	0.318 "	8.08 mm	Male Pin	Through Hole	1	All	0.09 in	2.29 mm	3.18 mm	0.125 in	0.1 in	2.54 mm	15 µin	0.38 µm	Unshrouded	UL94 V-0	Gold	Gold	Board to Board, Cable	Flash	-65 ░C	105 ░C	Phosphor Bronze	Black	8	13.55 mm	0.533 in	Square	Solder
TE Connectivity AMP Connectors 87224-3	3 A	Push-Pull	Header	Thermoplastic	0.318 "	8.08 mm	Male Pin	Through Hole	1	All	0.09 in	2.29 mm	3.18 mm	0.125 in	0.1 in	2.54 mm	15 µin	0.38 µm	Unshrouded	UL94 V-0	Gold	Gold	Board to Board, Cable	Flash	-65 ░C	105 ░C	Phosphor Bronze	Black		13.55 mm	0.533 in	Square	Solder
TE Connectivity AMP Connectors 2-87224-5	3 A	Push-Pull	Header	Thermoplastic	0.318 "	8.08 mm	Male Pin	Through Hole	1	All	0.09 in	2.29 mm	3.18 mm	0.125 in	0.1 in	2.54 mm	15 µin	0.38 µm	Unshrouded	UL94 V-0	Gold	Gold	Board to Board, Cable	Flash	-65 ░C	105 ░C	Phosphor Bronze	Black		13.55 mm	0.533 in	Square	Solder
TE Connectivity AMP Connectors 2-87224-6	3 A	Push-Pull	Header	Thermoplastic	0.318 "	8.08 mm	Male Pin	Through Hole	1	All	0.09 in	2.29 mm	3.18 mm	0.125 in	0.1 in	2.54 mm	15 µin	0.38 µm	Unshrouded	UL94 V-0	Gold	Gold	Board to Board, Cable	Flash	-65 ░C	105 ░C	Phosphor Bronze	Black	26	13.55 mm	0.533 in	Square	Solder
TE Connectivity AMP Connectors 87224-2	3 A	Push-Pull	Header	Thermoplastic	0.318 "	8.08 mm	Male Pin	Through Hole	1	All	0.09 in	2.29 mm	3.18 mm	0.125 in	0.1 in	2.54 mm	15 µin	0.38 µm	Unshrouded	UL94 V-0	Gold	Gold	Board to Board, Cable	Flash	-65 ░C	105 ░C	Phosphor Bronze	Black	2	13.55 mm	0.533 in	Square	Solder
