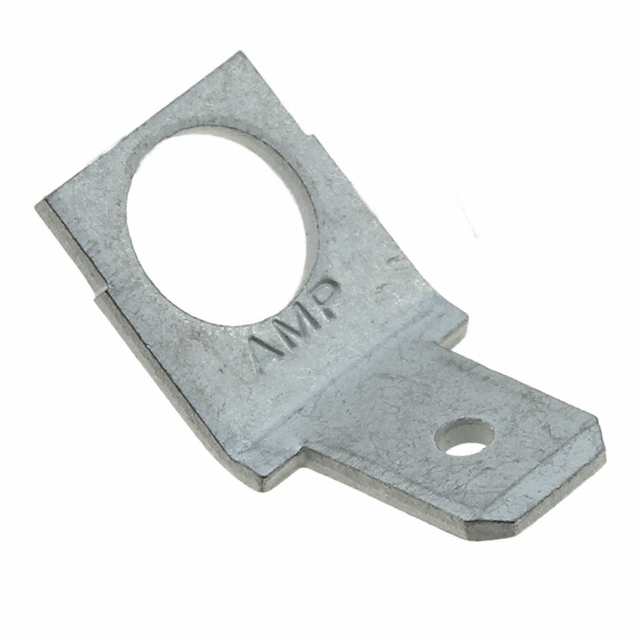

1217050-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.187
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217050-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.187
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217050-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Mounting Type | Board, Chassis |
| Tab Length | 6.35 mm |
| Tab Length | 0.25 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Angled - 45° |
| Termination | Rivet, Screw, Stud |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.23 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.18 | |||
| 1000 | $ 0.13 | |||
| 5000 | $ 0.12 | |||
| 10000 | $ 0.10 | |||
1217050 Series
CONN QC TAB 0.187
| Part | Tab Length | Tab Length | Insulation | Tab Width | Tab Width | Terminal Type | Tab Thickness | Tab Thickness | Gender | Contact Finish | Mounting Type | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217050-1 | 6.35 mm | 0.25 in | Non-Insulated | 4.75 mm | 0.187 in | Angled - 45° | 0.032 in | 0.81 mm | Male | Tin | Board, Chassis | Brass | Rivet, Screw, Stud |
Description
General part information
1217050 Series
0.187" (4.75mm) Quick Connect Male Screw, Rivet, Stud Connector Non-Insulated
