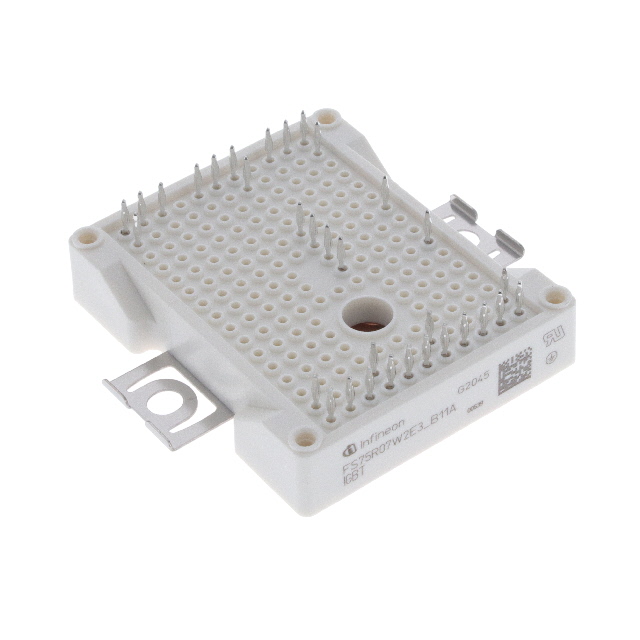

FS75R07W2E3B11ABOMA1

Active

Infineon Technologies

THE FS75R07W2E3_B11A IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT3 - E3 MODULE IN A EASYPACK™ 2B HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 650 V AND 75 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FS75R07W2E3_B11A IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT3 - E3 MODULE IN A EASYPACK™ 2B HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 650 V AND 75 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FS75R07W2E3B11ABOMA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	95 A
Current - Collector Cutoff (Max) [Max]	50 µA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	4.6 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	275 W
Supplier Device Package	ACEPACK™ 2
Vce(on) (Max) @ Vge, Ic	1.9 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max)	Configuration	Current - Collector (Ic) (Max) [Max]	IGBT Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Vce(on) (Max) @ Vge, Ic	NTC Thermistor	Input Capacitance (Cies) @ Vce	Package / Case	Input	Mounting Type
Infineon Technologies FS75R07W2E3B11ABOMA1	275 W	650 V	Three Phase Inverter	95 A	Trench Field Stop	150 °C	-40 °C	ACEPACK™ 2	50 µA	1.9 V		4.6 nF	Module	Standard	Chassis Mount
Infineon Technologies FS75R07N2E4BOSA1	250 W	650 V	Three Phase Inverter	75 A	Trench Field Stop			Module	1 mA	1.95 V		4.6 nF	Module	Standard	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT Module Trench Field Stop Three Phase Inverter 650 V 95 A 275 W Chassis Mount ACEPACK™ 2
