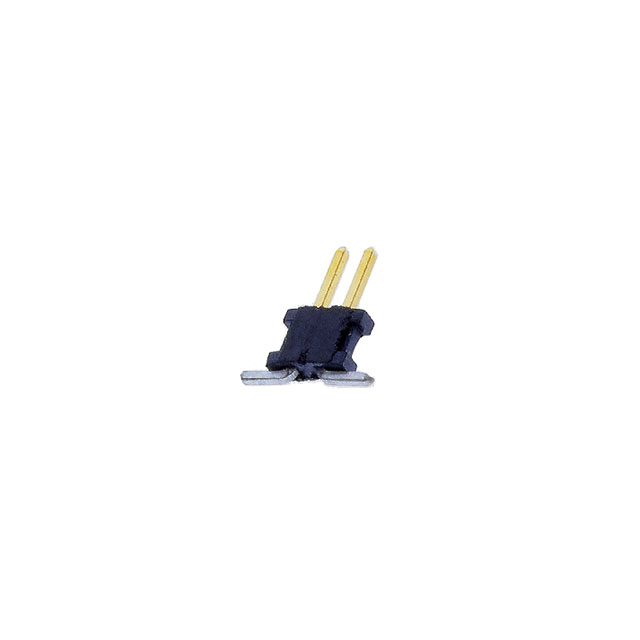

FTSH-101-01-L-DV
ActiveSamtec Inc.
CONN HEADER SMD 2POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FTSH-101-01-L-DV
ActiveSamtec Inc.
CONN HEADER SMD 2POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FTSH-101-01-L-DV |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 3.05 mm |
| Contact Length - Mating | 0.12 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 2.51 mm |
| Insulation Height | 0.099 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.47 | |
| 10 | $ 0.41 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.24 | |||
| 5000 | $ 0.21 | |||
| 10000 | $ 0.20 | |||
Description
General part information
FTSH-101 Series
Connector Header Surface Mount 2 position
