RTS014N8SHEC03
ActiveAmphenol Sine Systems Corp

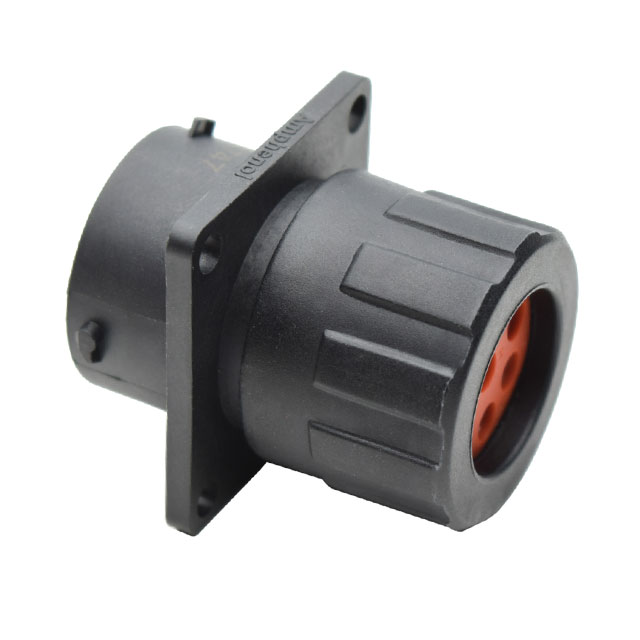

CONN RCPT HSNG FMALE 8POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
RTS014N8SHEC03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSNG FMALE 8POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS014N8SHEC03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Housing Color | Black |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert | 14-8 |
| Shielding | Unshielded |
| Type | For Female Sockets |
RTS014 Series
| Part | Shielding | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Number of Positions | Type | Contact Type | Note | Material Flammability Rating | Mounting Feature | Ingress Protection | Contact Shape | Contact Size | Insert Material | Orientation | Features | Connector Type | Housing Color | Includes | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Unshielded | 14-8 | 125 °C | -40 °C | Bayonet Lock | 8 | For Female Sockets | Crimp | Contacts Not Included | UL94 V-0 | Flange | IP67 IP69K | Circular | 16 | Thermoplastic | N | Backshell | Receptacle Housing | Black | |||
Amphenol Sine Systems Corp | Unshielded | 14-3 | 125 °C | -40 °C | Bayonet Lock | For Female Sockets | Crimp | Contacts Not Included | UL94 V-0 | Flange | IP67 IP69K | Circular | 8 | Thermoplastic | N | Receptacle Housing | Black | 1 Connector 1 Gasket | ||||
Amphenol Sine Systems Corp | Unshielded | 14-12 | 125 °C | -40 °C | Bayonet Lock | 12 | For Female Sockets | Crimp | Contacts Not Included | UL94 V-0 | Flange | IP67 IP69K | Circular | 16 | Thermoplastic | N | Backshell | Receptacle Housing | Black | |||
Amphenol Sine Systems Corp | Unshielded | 125 °C | -40 °C | Bayonet Lock | 4 | For Female Sockets | Crimp | Contacts Not Included | UL94 V-0 | Flange | IP67 IP69K | Circular | 2.5 mm | Thermoplastic | N | Receptacle Housing | Black | 1 Connector 1 Gasket | 4 | 14 | ||
Amphenol Sine Systems Corp | Unshielded | 14-12 | 125 °C | -40 °C | Bayonet Lock | 12 | For Male Pins | Crimp | Contacts Not Included | UL94 V-0 | Flange | IP67 IP69K | Circular | 16 | Thermoplastic | N | Receptacle Housing | Black | 1 Connector 1 Gasket | |||
Amphenol Sine Systems Corp | Unshielded | 14-12 | 125 °C | -40 °C | Bayonet Lock | 12 | For Male Pins | Crimp | Contacts Not Included | UL94 V-0 | Flange | IP67 IP69K | Circular | 16 | Thermoplastic | N | Backshell | Receptacle Housing | Black | |||
Amphenol Sine Systems Corp | Unshielded | 14-12 | 125 °C | -40 °C | Bayonet Lock | 12 | For Female Sockets | Crimp | Contacts Not Included | UL94 V-0 | Flange | IP67 IP69K | Circular | 16 | Thermoplastic | N | Receptacle Housing | Black | 1 Connector 1 Gasket | |||
Amphenol Sine Systems Corp | Unshielded | 14-3 | 125 °C | -40 °C | Bayonet Lock | For Male Pins | Crimp | Contacts Not Included | UL94 V-0 | Flange | IP67 IP69K | Circular | 8 | Thermoplastic | N | Receptacle Housing | Black | 1 Connector 1 Gasket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.91 | |
| 10 | $ 7.62 | |||
| 25 | $ 6.89 | |||
| 50 | $ 6.56 | |||
Description
General part information
RTS014 Series
8 Position Circular Connector Receptacle Housing Panel Mount Backshell
