L717HDAH26POL2RM5

Active

Amphenol ICC (Commercial Products)

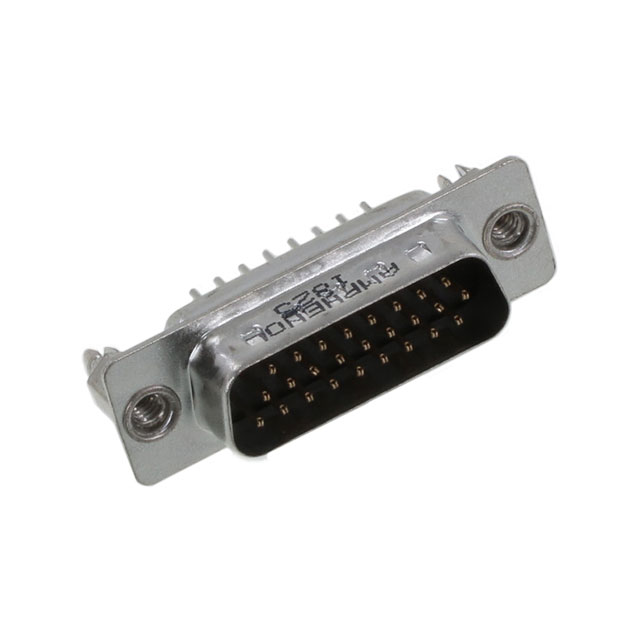

CONN D-SUB HD PLUG 26P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717HDAH26POL2RM5

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD PLUG 26P VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717HDAH26POL2RM5

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder
Voltage Rating	250 VDC

L717HDAH26 Series

Part	Contact Finish Thickness	Contact Type	Connector Type	Features	Material Flammability Rating	Color	Mounting Type	Dielectric Material	Current Rating (Amps)	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout	Shell Size, Connector Layout	Termination	Voltage Rating	Contact Finish	Flange Feature	Contact Material	Number of Rows	Number of Positions	Connector Style	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717HDAH26POL2RM5	Flash	Signal	Male Pins Plug	Board Lock Grounding Indents	UL94 V-0	Black	Through Hole	Thermoplastic Glass Filled	3 A	Stamped	105 ░C	-55 °C	2	(DA A) High Density	Solder	250 VDC	Gold	4-40 Board Side	Brass	3	26	D-Sub High Density
Amphenol ICC (Commercial Products) L717HDAH26POL2RM8	Flash	Signal	Male Pins Plug	Board Lock Grounding Indents	UL94 V-0	Black	Through Hole	Thermoplastic Glass Filled	3 A	Stamped	105 ░C	-55 °C	2	(DA A) High Density	Solder	250 VDC	Gold	Female Screwlock (4-40) Mating Side	Brass	3	26	D-Sub High Density
Amphenol ICC (Commercial Products) L717HDAH26POL2RM8C309		Signal	Male Pins Plug	Board Lock Grounding Indents	UL94 V-0	Black	Through Hole	Thermoplastic Glass Filled	3 A	Stamped	105 ░C	-55 °C	2	(DA A) High Density	Solder	250 VDC	Gold	Female Screwlock (4-40) Mating Side	Brass	3	26	D-Sub High Density	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717HDAH26P	Flash	Signal	Male Pins Plug	Grounding Indents	UL94 V-0		Free Hanging (In-Line)	Thermoplastic Glass Filled	3 A	Stamped	155 °C	-55 °C	2	(DA A) High Density		250 VDC	Gold	Cable Side	Brass	3	26	D-Sub High Density
Amphenol ICC (Commercial Products) L717HDAH26PC309		Signal	Male Pins Plug	Grounding Indents	UL94 V-0		Free Hanging (In-Line)	Thermoplastic Glass Filled	3 A	Stamped	155 °C	-55 °C	2	(DA A) High Density		250 VDC	Gold	Cable Side	Brass	3	26	D-Sub High Density	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717HDAH26POL2	Flash	Signal	Male Pins Plug	Grounding Indents	UL94 V-0	Black	Through Hole	Thermoplastic Glass Filled	3 A	Stamped	105 ░C	-55 °C	2	(DA A) High Density	Solder	250 VDC	Gold	4-40 Board Side	Brass	3	26	D-Sub High Density
Amphenol ICC (Commercial Products) L717HDAH26POL2C309		Signal	Male Pins Plug	Grounding Indents	UL94 V-0	Black	Through Hole	Thermoplastic Glass Filled	3 A	Stamped	105 ░C	-55 °C	2	(DA A) High Density	Solder	250 VDC	Gold	4-40 Board Side	Brass	3	26	D-Sub High Density	0.76 Ám	30 Áin
