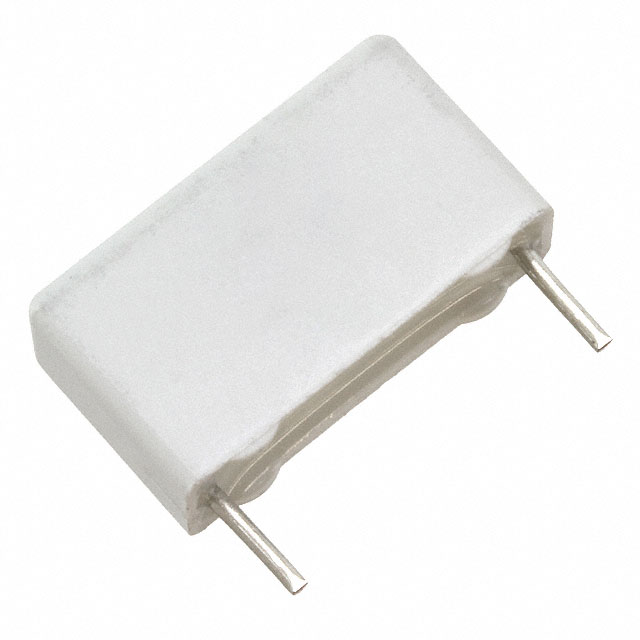

MMK15105J250B06L4BULK

Active

KEMET

CAP FILM 1UF 5% 250VDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 1UF 5% 250VDC RAD

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Package / Case	Lead Spacing	Lead Spacing	Voltage Rating - DC	Termination	Applications	Voltage Rating - AC	Dielectric Material	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET MMK15334K250B04L4BULK	0.217 in	5.5 mm	0.709 in	18 mm	Through Hole	0.33 µF	100 °C	-55 °C	10 %	Radial	15 mm	0.591 in	250 V	PC Pins	General Purpose	160 V	Polyester Metallized	0.413 in	10.5 mm
KEMET MMK15105J250B06L4BULK	0.295 in	7.5 mm	0.709 in	18 mm	Through Hole	1 µF	100 °C	-55 °C	5 %	Radial	15 mm	0.591 in	250 V	PC Pins	General Purpose	160 V	Polyester Metallized			0.571 in	14.5 mm
KEMET MMK15105K100B04L4BULK	0.217 in	5.5 mm	0.709 in	18 mm	Through Hole	1 µF	100 °C	-55 °C	10 %	Radial	15 mm	0.591 in	100 V	PC Pins	General Purpose	63 V	Polyester Metallized	0.413 in	10.5 mm
KEMET MMK15154K400B04L4BULK	0.217 in	5.5 mm	0.709 in	18 mm	Through Hole	0.15 ÁF	100 °C	-55 °C	10 %	Radial	15 mm	0.591 in	400 V	PC Pins	General Purpose	200 V	Polyester Metallized	0.413 in	10.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3200	$ 0.42

General part information

1 µF Film Capacitor 160V 250V Polyester, Metallized Radial
