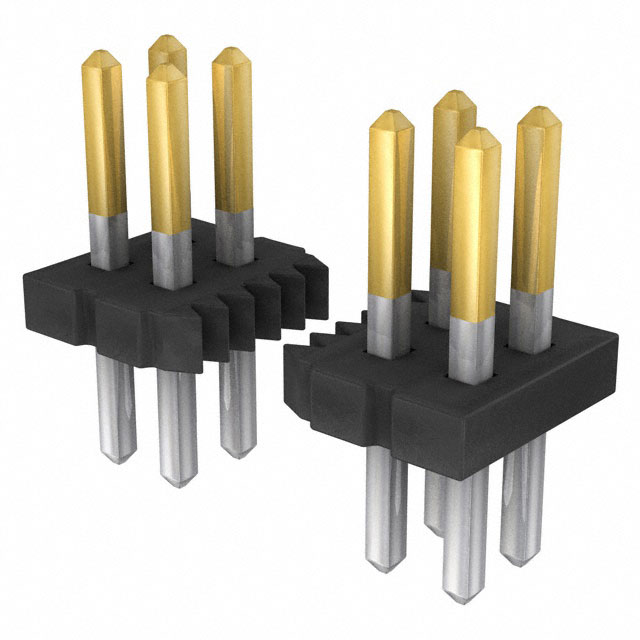

FTS-136-01-L-D
ActiveSamtec Inc.
CONN HEADER VERT 72POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
FTS-136-01-L-D
ActiveSamtec Inc.
CONN HEADER VERT 72POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FTS-136-01-L-D |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 3.05 mm |
| Contact Length - Mating | 0.12 in |
| Contact Length - Post | 0.09 " |
| Contact Length - Post | 2.29 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.034 in |
| Insulation Height | 0.86 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 72 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.244 in |
| Overall Contact Length | 6.2 mm |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
FTS-136 Series
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Fastening Type | Contact Finish - Mating | Contact Shape | Number of Positions | Number of Rows | Insulation Color | Contact Type | Material Flammability Rating | Style | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Connector Type | Contact Material | Termination | Features | Overall Contact Length | Overall Contact Length | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | ||||||||||||||||||||||||||||||||||
Samtec Inc. | 3 µin | 0.076 µm | Tin | Surface Mount | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Push-Pull | Gold | Square | 72 | 2 | Black | Male Pin | UL94 V-0 | Board to Board Cable | 0.05 in | 1.27 mm | 0.065 in | 1.65 mm | All | Unshrouded | -55 °C | 125 °C | 0.034 in | 0.86 mm | Cuttable Header | Phosphor Bronze | Solder | |||||
Samtec Inc. | 10 çin | 0.25 çm | Tin | Surface Mount | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Push-Pull | Gold | Square | 72 | 2 | Black | Male Pin | UL94 V-0 | Board to Board Cable | 0.05 in | 1.27 mm | 0.12 in | 3.05 mm | All | Unshrouded | -55 °C | 125 °C | 0.034 in | 0.86 mm | Cuttable Header | Phosphor Bronze | Solder | Pick and Place | ||||
Samtec Inc. | 10 çin | 0.25 çm | Tin | Through Hole | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Push-Pull | Gold | Square | 72 | 2 | Black | Male Pin | UL94 V-0 | Board to Board Cable | 0.05 in | 1.27 mm | 0.12 in | 3.05 mm | All | Unshrouded | -55 °C | 125 °C | 0.034 in | 0.86 mm | Cuttable Header | Phosphor Bronze | Solder | 0.244 in | 6.2 mm | 0.09 " | 2.29 mm | |
Samtec Inc. | 3 µin | 0.076 µm | Tin | Surface Mount | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Push-Pull | Gold | Square | 72 | 2 | Black | Male Pin | UL94 V-0 | Board to Board Cable | 0.05 in | 1.27 mm | 0.065 in | 1.65 mm | All | Unshrouded | -55 °C | 125 °C | 0.034 in | 0.86 mm | Cuttable Header | Phosphor Bronze | Solder | Pick and Place | ||||
Samtec Inc. | 10 çin | 0.25 çm | Tin | Through Hole | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Push-Pull | Gold | Square | 72 | 2 | Black | Male Pin | UL94 V-0 | Board to Board Cable | 0.05 in | 1.27 mm | 0.065 in | 1.65 mm | All | Unshrouded | -55 °C | 125 °C | 0.034 in | 0.86 mm | Cuttable Header | Phosphor Bronze | Solder | 0.09 " | 2.29 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.61 | |
| 10 | $ 9.40 | |||
| 100 | $ 8.20 | |||
| 500 | $ 6.99 | |||
| 1000 | $ 6.41 | |||
Description
General part information
FTS-136 Series
Connector Header Through Hole 72 position 0.050" (1.27mm)
