FLC.00.250.CTAC27

Active

LEMO

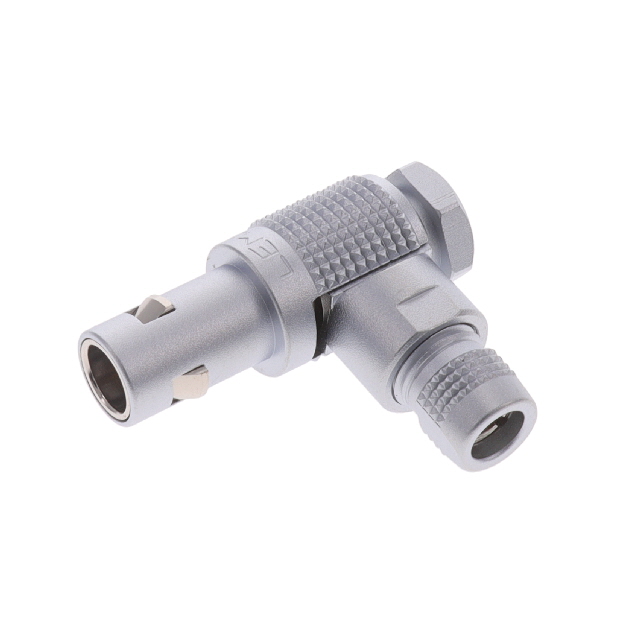

CONN NIMCAMA PLG R/A 50OHM SOLDR

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMA PLG R/A 50OHM SOLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FLC.00.250.CTAC27	FLC.00 Series

Body Finish	Chrome	Chrome
Body Material	Brass	Brass
Cable Group	RG-178B, 196A	RG-178B, 196A
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP50
Mating Cycles	5000	5000
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Clamp	Clamp
Voltage Rating	700 VDC	700 VDC

CONN NIMCAMA PLG R/A 50OHM SOLDR

Part	Center Contact Plating	Connector Style	Housing Color	Shield Termination	Impedance	Voltage Rating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Body Material	Dielectric Material	Fastening Type	Number of Ports	Body Finish	Contact Termination	Center Contact Material	Mounting Type	Connector Type	Cable Group
LEMO FLC.00.250.CTAC31Z	Gold	NIM-CAMAC CD/N 549	Silver	Clamp	50 Ohms	700 VDC	IP50	-55 °C	260 ░C	5000	Brass	Polytetrafluoroethylene (PTFE)	Push-Pull	1	Chrome	Solder	Brass	Free Hanging (In-Line), Right Angle	Male Pin, Plug
LEMO FLC.00.250.CTAC27	Gold	NIM-CAMAC CD/N 549	Silver	Clamp	50 Ohms	700 VDC	IP50	-55 °C	260 ░C	5000	Brass	Polytetrafluoroethylene (PTFE)	Push-Pull	1	Chrome	Solder	Brass	Free Hanging (In-Line), Right Angle	Male Pin, Plug	196A, RG-178B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
