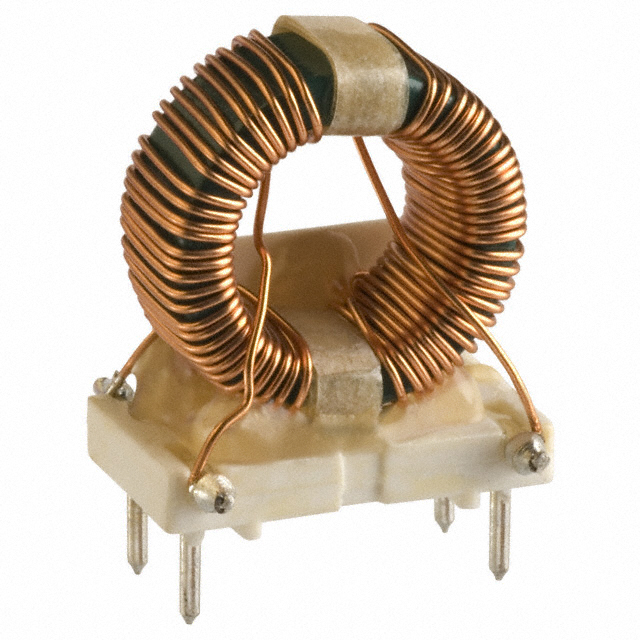

8102-RC
ActiveBourns Inc.
2.5MH@1KHZ 90MΩ 2 PLUGIN COMMON MODE FILTERS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8102-RC
ActiveBourns Inc.
2.5MH@1KHZ 90MΩ 2 PLUGIN COMMON MODE FILTERS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8102-RC |
|---|---|
| Current Rating (Max) [Max] | 2.4 A |
| DC Resistance (DCR) (Max) [Max] | 90 mOhm |
| Height (Max) | 22.86 mm |
| Height (Max) [Max] | 0.9 in |
| Inductance @ Frequency | 2.5 mH, 1 kHz |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 0.76 " |
| Size / Dimension [x] | 19.3 mm |
| Size / Dimension [y] | 10.8 mm |
| Size / Dimension [y] | 0.425 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
8102 Series
2.5 mH 2 Line Common Mode Choke Through Hole 2.4A DCR 90mOhm
