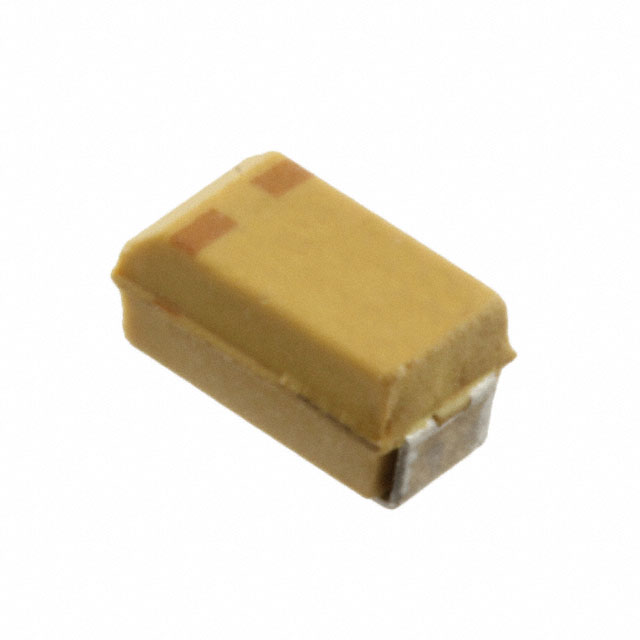

T490A107M004ATE500
ActiveKEMET
CAP TANT 100UF 20% 4V 1206
Deep-Dive with AI
Search across all available documentation for this part.
T490A107M004ATE500
ActiveKEMET
CAP TANT 100UF 20% 4V 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T490A107M004ATE500 |
|---|---|
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 500 mOhms |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Manufacturer Size Code | A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.65 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.90 | ||
| 10 | $ 0.65 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 2000 | $ 0.30 | ||
| 4000 | $ 0.29 | |||
| 10000 | $ 0.28 | |||
| 14000 | $ 0.27 | |||
Description
General part information
T490A Series
100 µF Molded Tantalum Capacitors 4 V 1206 (3216 Metric) 500mOhm
