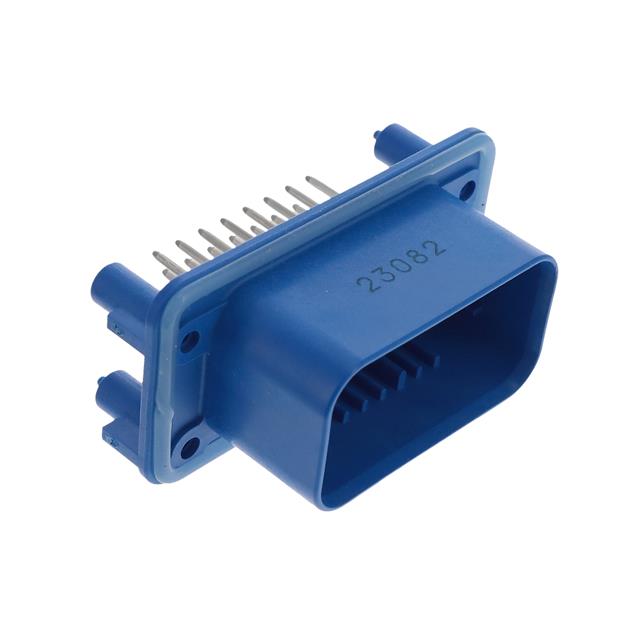

1-776228-5
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 23POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-776228-5
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 23POS 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-776228-5 | 776228 Series |
|---|---|---|
| Applications | Industrial, Automotive | Industrial, Automotive |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold-Palladium | Gold-Palladium |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Sealed, Mounting Flange | Sealed, Mounting Flange |
| Insulation Color | Blue | Blue, Black, Natural |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 23 | 23 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 125 °C | 105 - 125 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.157 " | 0.157 " |
| Pitch - Mating | 4 mm | 4 mm |
| Row Spacing - Mating | 0.157 in | 0.157 in |
| Row Spacing - Mating | 4 mm | 4 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
776228 Series
CONN HEADER VERT 23POS 4MM
| Part | Mounting Type | Contact Type | Applications | Number of Rows | Contact Shape | Termination | Pitch - Mating | Pitch - Mating | Number of Positions | Shrouding | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Voltage Rating | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Style | Fastening Type | Connector Type | Features | Number of Positions Loaded | Contact Material | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776228-5 | Panel Mount, Through Hole | Male Pin | Automotive, Industrial | 3 | Circular | Solder | 0.157 " | 4 mm | 23 | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 105 ░C | Blue | 250 VAC | Varies by Wire Gauge | 0.157 in | 4 mm | Board to Cable/Wire | Locking Ramp | Header | Mounting Flange, Sealed | All | Brass | |
TE Connectivity AMP Connectors 776228-1 | Panel Mount, Through Hole | Male Pin | Automotive, Industrial | 3 | Circular | Solder | 0.157 " | 4 mm | 23 | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 105 ░C | Black | 250 VAC | Varies by Wire Gauge | 0.157 in | 4 mm | Board to Cable/Wire | Locking Ramp | Header | Mounting Flange, Sealed | All | Brass | |
TE Connectivity AMP Connectors 1-776228-2 | Panel Mount, Through Hole | Male Pin | Automotive, Industrial | 3 | Circular | Solder | 0.157 " | 4 mm | 23 | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 125 °C | Natural | 250 VAC | Varies by Wire Gauge | 0.157 in | 4 mm | Board to Cable/Wire | Locking Ramp | Header | Mounting Flange, Sealed | All | Brass | Gold-Palladium |
TE Connectivity AMP Connectors 1-776228-5 | Panel Mount, Through Hole | Male Pin | Automotive, Industrial | 3 | Circular | Solder | 0.157 " | 4 mm | 23 | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 125 °C | Blue | 250 VAC | Varies by Wire Gauge | 0.157 in | 4 mm | Board to Cable/Wire | Locking Ramp | Header | Mounting Flange, Sealed | All | Brass | Gold-Palladium |
TE Connectivity AMP Connectors 1-776228-1 | Panel Mount, Through Hole | Male Pin | Automotive, Industrial | 3 | Circular | Solder | 0.157 " | 4 mm | 23 | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 125 °C | Black | 250 VAC | Varies by Wire Gauge | 0.157 in | 4 mm | Board to Cable/Wire | Locking Ramp | Header | Mounting Flange, Sealed | All | Brass | Gold-Palladium |
TE Connectivity AMP Connectors 776228-2 | Panel Mount, Through Hole | Male Pin | Automotive, Industrial | 3 | Circular | Solder | 0.157 " | 4 mm | 23 | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 105 ░C | Natural | 250 VAC | Varies by Wire Gauge | 0.157 in | 4 mm | Board to Cable/Wire | Locking Ramp | Header | Mounting Flange, Sealed | All | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.00 | |
| 40 | $ 14.30 | |||
| 80 | $ 13.59 | |||
| 440 | $ 12.19 | |||
Description
General part information
776228 Series
Connector Header Panel Mount, Through Hole 23 position 0.157" (4.00mm)
