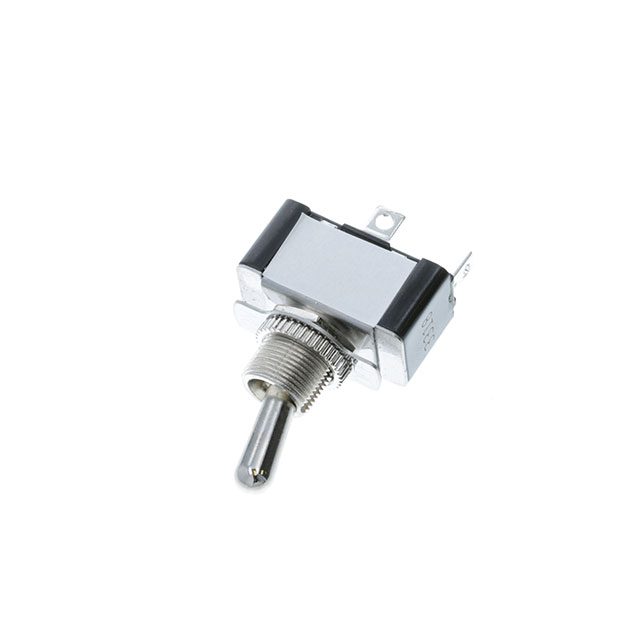

TA2-1B-AC-5

Active

Switch Components

250V SPST STRAIGHT TOGGLE SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TA2-1B-AC-5

Active

Switch Components

250V SPST STRAIGHT TOGGLE SWITCHES ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TA2-1B-AC-5

Actuator Length [x]	16.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	12 A
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	250 V

ta-ta2 Series

Part	Voltage Rating - AC	Bushing Thread	Current Rating (Amps)	Illumination	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Switch Function	Actuator Length [x]	Circuit	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Voltage Rating - DC
Switch Components TA2-1G-AC-1-O	250 V	15/32-32	12 A	Non-Illuminated	12.2 mm	Standard Round	Quick Connect - 0.250" (6.3mm)	Mom-Off-Mom	16.5 mm	SPDT	IP55 - Dust Protected Water Resistant
Switch Components TA2-1B-DC-5	125 V	15/32-32	20 A 21 A	Non-Illuminated	12 mm	Standard Round	Solder Lug	Off-Mom	16.5 mm	SPST-NO		85 °C	-20 C	6000 Cycles	14 V
Switch Components TA2-1G-DC-1-O	125 V	15/32-32	20 A 21 A	Non-Illuminated	12 mm	Standard Round	Quick Connect - 0.250" (6.3mm)	Mom-Off-Mom	16.5 mm	SPDT	IP55 - Dust Protected Water Resistant	85 °C	-20 C	6000 Cycles	14 V
Switch Components TA2-1B-AC-5	250 V	15/32-32	12 A	Non-Illuminated	12.2 mm	Standard Round	Solder Lug	Off-Mom	16.5 mm	SPST
Switch Components TA2-1D-AC-6	250 V	15/32-32	12 A	Non-Illuminated	12.2 mm	Standard Round	Screw Terminal	On-On	16.5 mm	SPDT
Switch Components TA2-1B-AC-1	250 V	15/32-32	12 A	Non-Illuminated	12.2 mm	Standard Round	Quick Connect - 0.250" (6.3mm)	Off-Mom	16.5 mm	SPST
Switch Components TA2-1G-DC-6	125 V	15/32-32	20 A 21 A	Non-Illuminated	12 mm	Standard Round	Screw Terminal	Mom-Off-Mom	16.5 mm	SPDT		85 °C	-20 C	6000 Cycles	14 V
Switch Components TA2-1G-AC-6	250 V	15/32-32	12 A	Non-Illuminated	12.2 mm	Standard Round	Screw Terminal	Mom-Off-Mom	16.5 mm	SPDT
Switch Components TA2-1B-DC-6	125 V	15/32-32	20 A 21 A	Non-Illuminated	12 mm	Standard Round	Screw Terminal	Off-Mom	16.5 mm	SPST-NO		85 °C	-20 C	6000 Cycles	14 V
Switch Components TA2-1B-DC-1	125 V	15/32-32	20 A 21 A	Non-Illuminated	12 mm	Standard Round	Quick Connect - 0.250" (6.3mm)	Off-Mom	16.5 mm	SPST-NO		85 °C	-20 C	6000 Cycles	14 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	Piece	1	$ 10.02
		200	$ 4.00
		500	$ 3.87
		1000	$ 3.80

Description

General part information

ta-ta2 Series

Toggle Switch SPST Panel Mount

Documents

Technical documentation and resources
