16SVPG270MX

Active

Panasonic Industrial Automation Sales

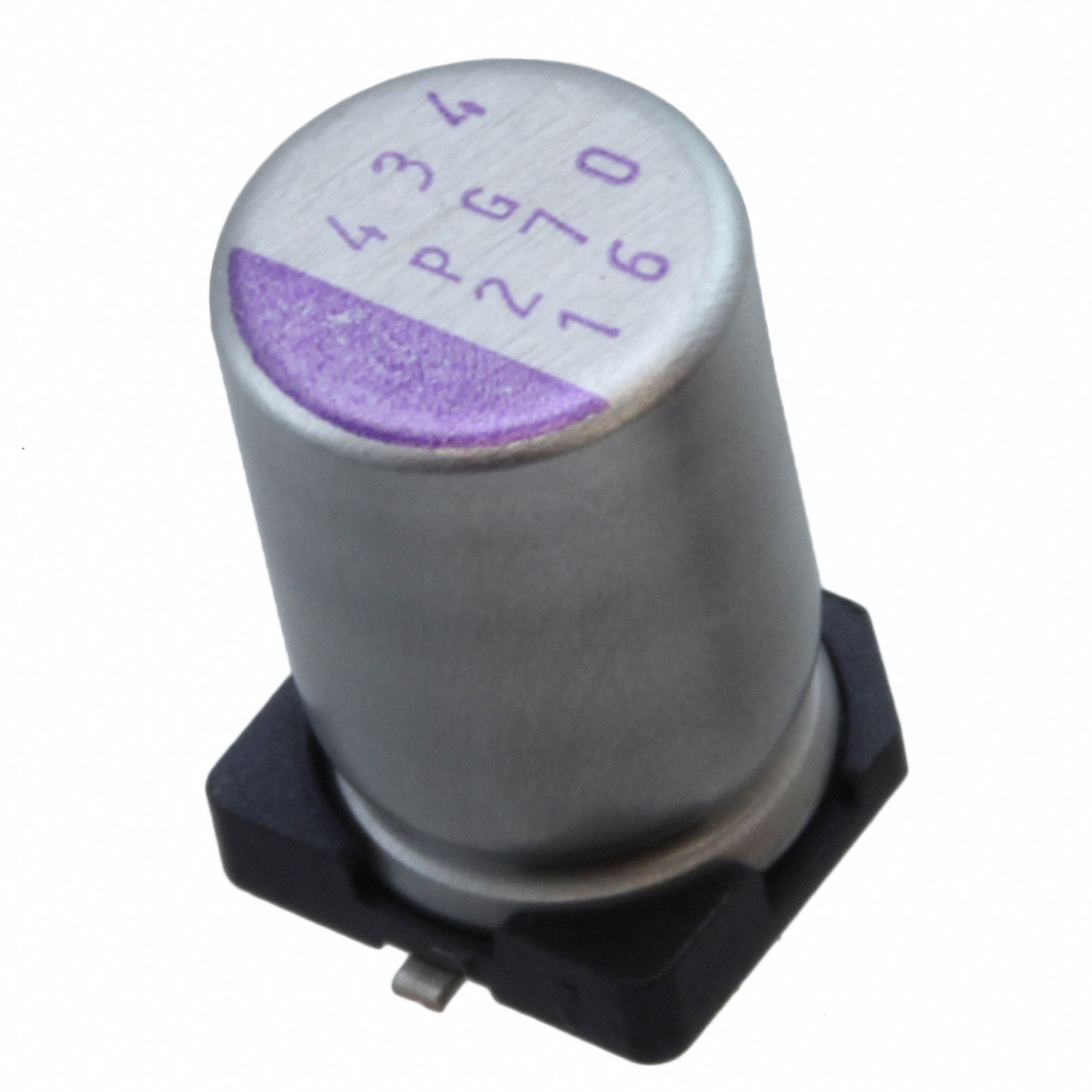

CAP ALUM POLY 270UF 20% 16V SMD

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 270UF 20% 16V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	16SVPG270MX

Applications	General Purpose
Capacitance	270 µF
ESR (Equivalent Series Resistance)	10 mOhm
Height - Seated (Max) [Max] [z]	8 mm
Height - Seated (Max) [Max] [z]	0.315 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	5.08 A
Ripple Current @ Low Frequency	254 mA
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Surface Mount Land Size [x]	6.6 mm
Surface Mount Land Size [x]	0.26 in
Surface Mount Land Size [y]	0.26 in
Surface Mount Land Size [y]	6.6 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Package / Case	Type	Lifetime @ Temp.	Voltage - Rated	Tolerance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Capacitance	Applications	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 16SVPG270MX	0.248 in	6.3 mm	10 mOhm	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	Polymer	5000 Hrs	16 V	20 %	Surface Mount	8 mm	0.315 in	105 ░C	-55 °C	5.08 A	254 mA	270 µF	General Purpose
Panasonic Industrial Automation Sales 16SVPG47M	0.197 "	5 mm	25 mOhm	0.209 in	5.3 mm	5.3 mm	0.209 in	Radial Can - SMD	Polymer	5000 Hrs	16 V	20 %	Surface Mount			105 ░C	-55 °C	3.2 A	160 mA	47 µF	General Purpose	0.177 "	4.5 mm
Panasonic Industrial Automation Sales 16SVPG270M	0.248 in	6.3 mm	8 mOhms	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	Polymer	5000 Hrs	16 V	20 %	Surface Mount			105 ░C	-55 °C	5.8 A	290 mA	270 µF	General Purpose	0.394 in		10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

270 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 10mOhm 5000 Hrs @ 105°C
