Q-0F02S000H003M

Active

Amphenol Custom Cable

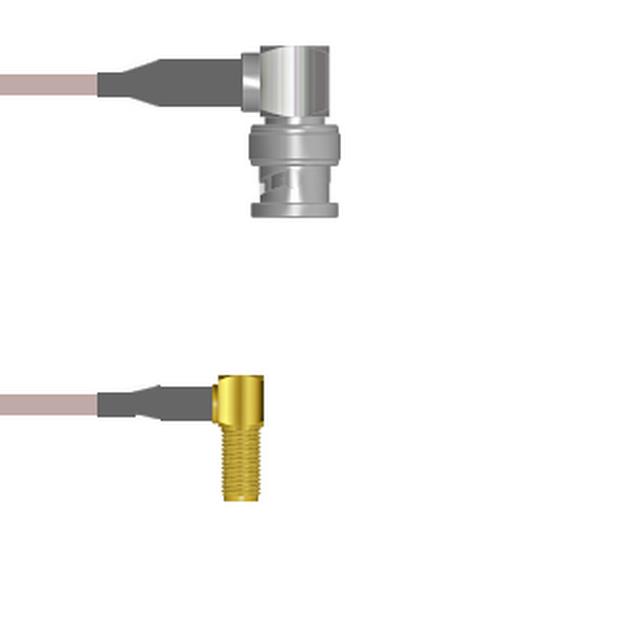

CBL ASSY BNC-SMA PLUG-JACK 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0F02S000H003M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-JACK 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0F02S000H003M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0F02S0 Series

Part	Frequency - Max [Max]	Color	Cable Type	Length	Length	Length	1st Contact Gender	2nd Connector	1st Connector Mounting Type	Overall Impedance	2nd Contact Gender	1st Connector	2nd Connector Mounting Type	Style	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-0F02S000H001M	4 GHz	Copper	RG-142	1 m	3.3 ft	39.4 in	Male	SMA Jack Right Angle	Free Hanging (In-Line)	50 Ohms	Female	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Shielded
Amphenol Custom Cable Q-0F02S000H060i	4 GHz	Copper	RG-142	1.5 m	5 ft	5 '	Male	SMA Jack Right Angle	Free Hanging (In-Line)	50 Ohms	Female	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Shielded
Amphenol Custom Cable Q-0F02S000H024i	4 GHz	Copper	RG-142	609.6 mm		24 "	Male	SMA Jack Right Angle	Free Hanging (In-Line)	50 Ohms	Female	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Shielded
Amphenol Custom Cable Q-0F02S000H003M	4 GHz	Copper	RG-142	3 m	9.8 '	118.1 in	Male	SMA Jack Right Angle	Free Hanging (In-Line)	50 Ohms	Female	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Shielded
Amphenol Custom Cable Q-0F02S000H.75M	4 GHz	Copper	RG-142	750 mm		29.53 "	Male	SMA Jack Right Angle	Free Hanging (In-Line)	50 Ohms	Female	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Shielded
Amphenol Custom Cable Q-0F02S000H084i	4 GHz	Copper	RG-142	2.1 m	7 ft	84 in	Male	SMA Jack Right Angle	Free Hanging (In-Line)	50 Ohms	Female	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Shielded
Amphenol Custom Cable Q-0F02S000H072i	4 GHz	Copper	RG-142	1.8 m	6 ft	72 in	Male	SMA Jack Right Angle	Free Hanging (In-Line)	50 Ohms	Female	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Shielded
Amphenol Custom Cable Q-0F02S000H018i	4 GHz	Copper	RG-142				Male	SMA Jack Right Angle	Free Hanging (In-Line)	50 Ohms	Female	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0F02S000H009i	4 GHz	Copper	RG-142	228.6 mm		9 "	Male	SMA Jack Right Angle	Free Hanging (In-Line)	50 Ohms	Female	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 208.88
		25	$ 194.32
		50	$ 179.76
		100	$ 167.28
		250	$ 156.88

Description

General part information

Q-0F02S0 Series

Cable Assembly Coaxial BNC to SMA RG-142 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
