QJ8035RH4TP

Active

IXYS

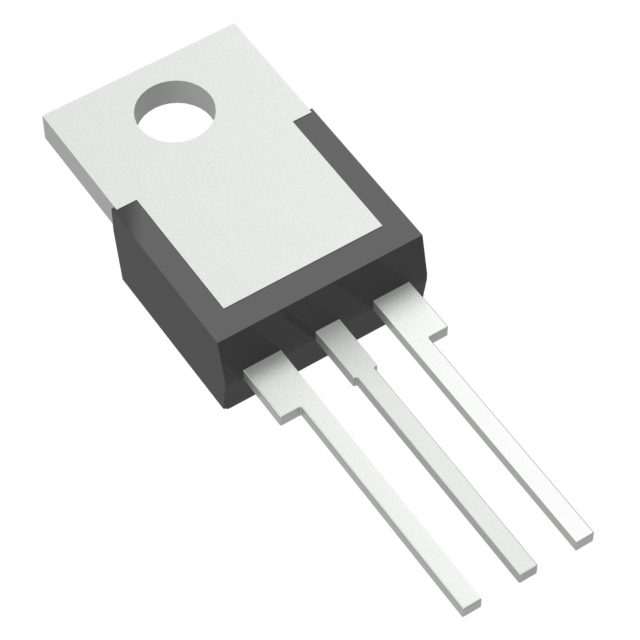

TRIAC ALTERNISTOR 800V 35A TO220

Search across all available documentation for this part.

Active

IXYS

TRIAC ALTERNISTOR 800V 35A TO220

Technical Specifications

Parameters and characteristics for this part

Specification	QJ8035RH4TP

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	35 mA
Current - Hold (Ih) (Max) [Max]	60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	350 A, 290 A
Current - On State (It (RMS)) (Max) [Max]	35 A
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-220-3
Supplier Device Package	TO-220
Triac Type	Alternistor - Snubberless
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V
Voltage - Off State	800 V

Part	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Hold (Ih) (Max) [Max]	Configuration	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Off State	Mounting Type	Voltage - Gate Trigger (Vgt) (Max) [Max]	Supplier Device Package	Triac Type	Current - On State (It (RMS)) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]
IXYS QJ8035NH4RP	290 A 350 A	60 mA	Single	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	150 °C	-40 °C	800 V	Surface Mount	1 V	TO-263 (D2PAK)	Alternistor - Snubberless	35 A	35 mA
IXYS QJ8035RH4TP	290 A 350 A	60 mA	Single	TO-220-3	150 °C	-40 °C	800 V	Through Hole	1 V	TO-220	Alternistor - Snubberless	35 A	35 mA
IXYS QJ8035NH4TP	290 A 350 A	60 mA	Single	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	150 °C	-40 °C	800 V	Surface Mount	1 V	TO-263 (D2PAK)	Alternistor - Snubberless	35 A	35 mA
IXYS QJ8035LH4TP	290 A 350 A	60 mA	Single	TO-220-3 Isolated Tab	150 °C	-40 °C	800 V	Through Hole	1 V	ITO-220AB	Alternistor - Snubberless	35 A	35 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRIAC Alternistor - Snubberless 800 V 35 A Through Hole TO-220
