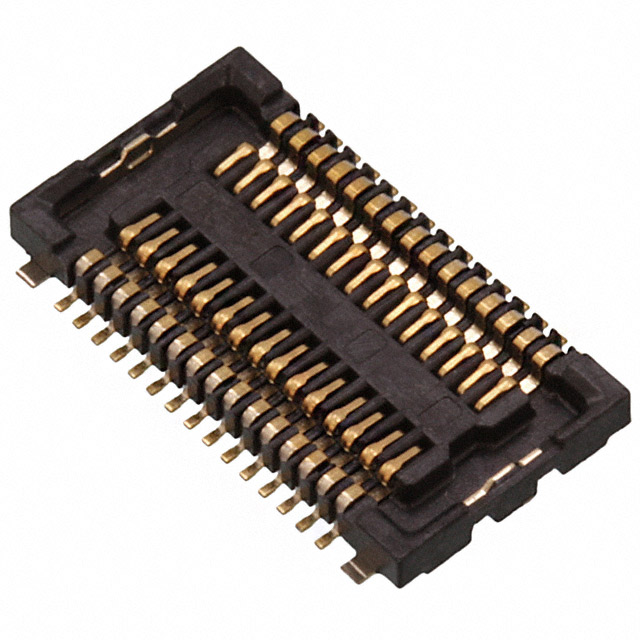

AXK7L30223G

Obsolete

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK7L30223G

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.86 mm
Height Above Board	0.034 "
Mated Stacking Heights	0.9 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Connector Type	Contact Finish	Features	Mounting Type	Number of Positions	Mated Stacking Heights	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Number of Rows
Panasonic Electric Works AXK7L30227G	Socket Center Strip Contacts	Gold	Solder Retention	Surface Mount	30	0.9 mm	0.016 in	0.4 mm	0.86 mm	0.034 "	2
Panasonic Electric Works AXK7L30223G	Socket Center Strip Contacts	Gold	Solder Retention	Surface Mount	30	0.9 mm	0.016 in	0.4 mm	0.86 mm	0.034 "	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 Position Connector Socket, Center Strip Contacts Surface Mount Gold
