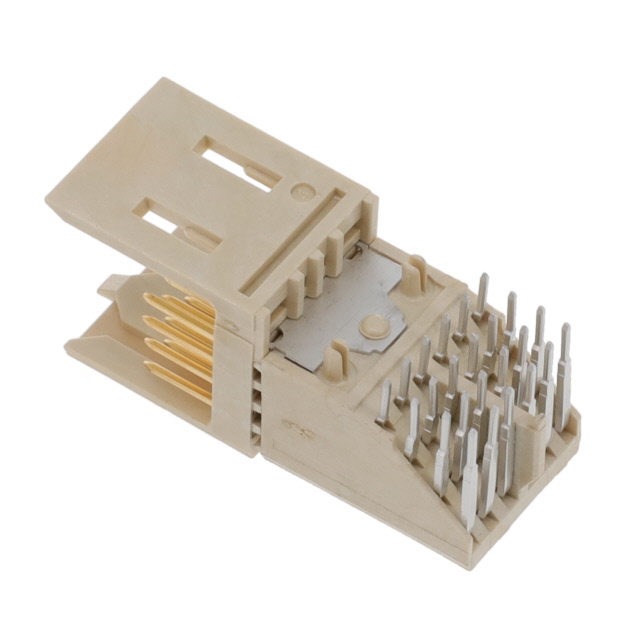

10114942-101LF
ActiveAmphenol ICC (FCI)
CONN HEADER 24POS EDGE MNT
Deep-Dive with AI
Search across all available documentation for this part.
10114942-101LF
ActiveAmphenol ICC (FCI)
CONN HEADER 24POS EDGE MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10114942-101LF |
|---|---|
| Color | Natural |
| Connector Type | Header, Male Pins |
| Contact Finish | GXT™, Gold or Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Columns | 6 |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.72 | |
| 10 | $ 2.08 | |||
| 25 | $ 1.86 | |||
| 50 | $ 1.73 | |||
| Digi-Reel® | 1 | $ 2.72 | ||
| 10 | $ 2.08 | |||
| 25 | $ 1.86 | |||
| 50 | $ 1.73 | |||
| Tape & Reel (TR) | 160 | $ 1.07 | ||
| 320 | $ 1.04 | |||
Description
General part information
10114942 Series
24 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural
