ActiveEDAC Inc.

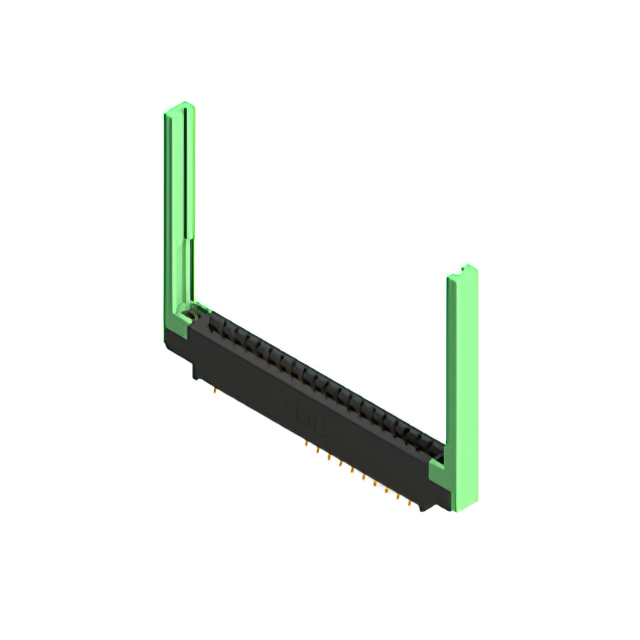

CONN EDGE DUAL FMALE 38POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-038-556-868
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 38POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-038-556-868 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 38 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
387-038 Series
...
| Part | Flange Feature | Flange Feature | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Card Type | Contact Material | Number of Rows | Read Out | Contact Type | Material - Insulation | Termination Rows | Contact Finish | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Color | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Single Edge | Copper Alloy | 1 | Single | Cantilever | Polyester Thermoplastic | 1 | Gold | Through Hole | 10 Áin | 0.25 Ám | 38 | 0.156 in | 3.96 mm | Black | 38 | |||
EDAC Inc. | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Single Edge | Copper Alloy | 1 | Single | Cantilever | Polyester Thermoplastic | 1 | Gold | Through Hole | 10 Áin | 0.25 Ám | 38 | 0.156 in | 3.96 mm | Black | 38 | ||||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | Copper Alloy | 2 | Dual | Cantilever | Polyester Thermoplastic | 2 | Gold | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 19 | 0.156 in | 3.96 mm | Black | 38 | |||||
EDAC Inc. | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | Copper Alloy | 2 | Dual | Cantilever | Polyester Thermoplastic | 2 | Gold | Through Hole | 10 Áin | 0.25 Ám | 19 | 0.156 in | 3.96 mm | Black | 38 | 3.25 mm | 0.128 " | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Single Edge | Copper Alloy | 1 | Single | Cantilever | Polyester Thermoplastic | 1 | Gold | Through Hole | 10 Áin | 0.25 Ám | 38 | 0.156 in | 3.96 mm | Black | 38 | |||||
EDAC Inc. | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Single Edge | Copper Alloy | 1 | Single | Cantilever | Polyester Thermoplastic | 1 | Gold | Through Hole Right Angle | 10 Áin | 0.25 Ám | 38 | 0.156 in | 3.96 mm | Black | 38 | ||||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Single Edge | Copper Alloy | 1 | Single | Cantilever | Polyester Thermoplastic | 1 | Gold | Through Hole | 10 Áin | 0.25 Ám | 38 | 0.156 in | 3.96 mm | Black | 38 | |||||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | Copper Alloy | 2 | Dual | Cantilever | Polyester Thermoplastic | 2 | Gold | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 19 | 0.156 in | 3.96 mm | Black | 38 | Card Extender | ||||
EDAC Inc. | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Single Edge | Copper Alloy | 1 | Single | Cantilever | Polyester Thermoplastic | 1 | Gold | Through Hole | 10 Áin | 0.25 Ám | 38 | 0.156 in | 3.96 mm | Black | 38 | 3.96 mm | 0.156 in | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | Copper Alloy | 2 | Dual | Cantilever | Polyester Thermoplastic | 2 | Gold | Through Hole | 10 Áin | 0.25 Ám | 19 | 0.156 in | 3.96 mm | Black | 38 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-038 Series
38 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
