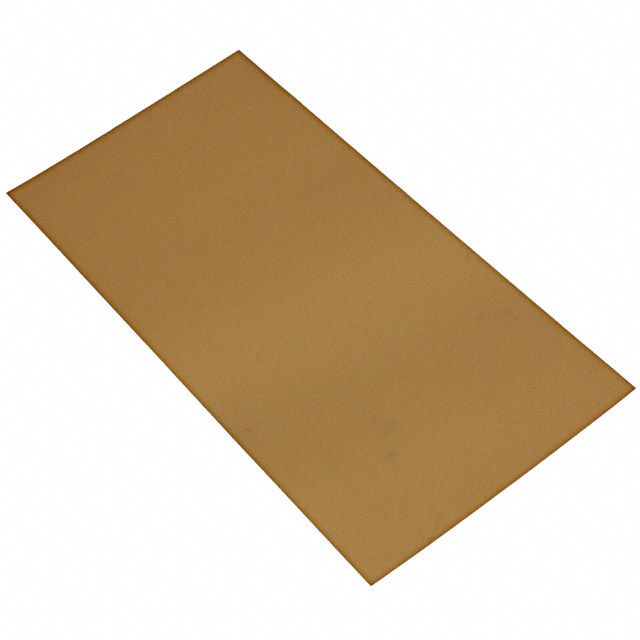

Specification	TG-A373F-640-320-0.45-1A

Adhesive	Adhesive - One Side
Color	Yellow
Material	Silicone Elastomer
Outline Length	640 mm
Outline Width	320 mm
Shape	Rectangular
Shelf Life	12 Months
Thermal Conductivity	1.4 W/m-K
Thickness	0.0177 in
Type	Sheet, Conductive Pad

TG-A373F Series

Part	Shelf Life	Thermal Conductivity	Material	Type	Thickness	Shape	Outline Length	Outline Width	Color	Adhesive	Shelf Life Start	Usage	Backing	Carrier
t-Global Technology TG-A373F-150-150-0.25-0	24 Months	1.4 W/m-K	Silicone Elastomer	Conductive Pad Sheet	0.01 in	Square	150 mm	150 mm	Yellow
t-Global Technology TG-A373F-640-320-0.45-1A	12 Months	1.4 W/m-K	Silicone Elastomer	Conductive Pad Sheet	0.0177 in	Rectangular	640 mm	320 mm	Yellow	Adhesive - One Side
t-Global Technology TG-A373F-100-100-0.3-0	24 Months	1.4 W/m-K	Silicone Elastomer	Conductive Pad Sheet	0.012 in	Square	100 mm	100 mm	Yellow
t-Global Technology TG-A373F-320-320-0.25-0	24 Months	1.4 W/m-K	Silicone Elastomer	Conductive Pad Sheet	0.01 in	Square	320 mm	320 mm	Yellow
t-Global Technology TG-A373F-50M-300-0.25-0	12 Months	1.4 W/m-K	Silicone Elastomer	Conductive Pad Sheet	0.01 in	Rectangular	5 mm	300 mm	Yellow		Date of Manufacture	Multi
t-Global Technology TG-A373F-320-320-0.3-2A	12 Months	1.4 W/m-K	Silicone Elastomer	Conductive Pad Sheet	0.012 in	Square	320 mm	320 mm	Yellow	Adhesive - Both Sides
t-Global Technology TG-A373F-150-150-0.3-2A	12 Months	1.4 W/m-K	Silicone Elastomer	Conductive Pad Sheet	0.012 in	Square	150 mm	150 mm	Yellow	Adhesive - Both Sides
t-Global Technology TG-A373F-640-320-0.25-1A	12 Months	1.4 W/m-K	Silicone Elastomer	Conductive Pad Sheet	0.01 in	Rectangular	640 mm	320 mm	Yellow	Adhesive - One Side
t-Global Technology TG-A373F-300-300-0.45-2A	12 Months	1.5 W/m-K	Silicone Elastomer	Conductive Pad Sheet	0.0177 in	Square	300 mm	300 mm	Yellow	Adhesive - Both Sides	Date of Manufacture	Multi	Fiberglass	Fiberglass
t-Global Technology TG-A373F-150-150-0.25-2A	12 Months	1.4 W/m-K	Silicone Elastomer	Conductive Pad Sheet	0.01 in	Square	150 mm	150 mm	Yellow	Adhesive - Both Sides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

Die-Cut Tolerence Guide

Thermal Pad Tolerance

Die Cut Parts Guide

TG-A373F-640-320-0.45-1A | Datasheet
