TWC-124-1A

Active

Cinch Connectivity Solutions Trompeter

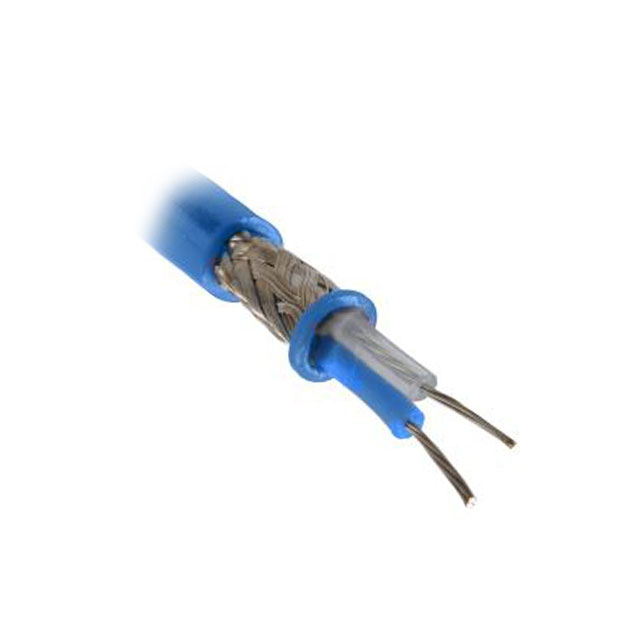

CABLE TWINAXIAL 500'

Deep-Dive with AI

Search across all available documentation for this part.

TWC-124-1A

Active

Cinch Connectivity Solutions Trompeter

CABLE TWINAXIAL 500'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 547.72
		3	$ 506.72
		5	$ 489.14
		7	$ 477.43
		10	$ 465.71

Description

General part information

TWC Series

Twinaxial Cable 500.0' (152.40m) 124 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TWC-124-1A	TWC Series

Cable Type	Twinaxial	Twinaxial, Twinaxial - Plenum
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand	-	28 - 33 AWG
Conductor Strand [custom]	7	7
Conductor Strand [custom]	38 AWG	38 AWG
Dielectric Diameter	-	1.93 mm
Dielectric Diameter	-	0.076 in
Dielectric Diameter [diameter]	2.16 mm	1.83 - 4.11 mm
Dielectric Diameter [diameter]	0.085 in	0.072 - 0.162 in
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Features	-	Flame Retardant
Impedance	124 Ohms	78 - 124 Ohms
Jacket (Insulation) Diameter [diameter]	3.81 mm	3.81 - 6.22 mm
Jacket (Insulation) Diameter [diameter]	0.15 in	0.15 - 0.245 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC), Polyolefin (PO)
Jacket Color	Blue	Blue
Length	152.4 m	152.4 m
Length	6000 in	6000 in
Operating Temperature	-	125 °C
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 - -30 °C
Shield Coverage	-	95 %
Shield Coverage [custom]	93 %	93 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid

TWC Series

CABLE TWINAXIAL 500'

Part	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Type	Length	Length	Jacket Color	Shield Coverage [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Impedance	Jacket (Insulation) Material	Dielectric Material	Conductor Material	Shield Coverage	Operating Temperature	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Dielectric Diameter	Dielectric Diameter	Conductor Strand [custom]
Cinch Connectivity Solutions Trompeter TWC-78-2	Copper, Tinned	-40 °C	80 C	Twinaxial	3.91 mm	0.154 in	Braid	152.4 m	6000 in	Blue	93 %	7	28 AWG	78 Ohms	Poly-Vinyl Chloride (PVC)	Polytetrafluoroethylene (PTFE)	Copper, Tinned
Cinch Connectivity Solutions Trompeter TWCP-78-2				Twinaxial - Plenum	1.83 mm	0.072 "	Braid	152.4 m	6000 in	Blue				78 Ohms				95 %	125 °C
Cinch Connectivity Solutions Trompeter TWC-78-1	Copper, Tinned	-40 °C	80 C	Twinaxial	2.16 mm	0.085 in	Braid	152.4 m	6000 in	Blue	93 %	7	33 AWG	78 Ohms	Poly-Vinyl Chloride (PVC)	Polytetrafluoroethylene (PTFE)	Copper, Tinned			3.81 mm	0.15 in
Cinch Connectivity Solutions Trompeter TWCH-78-2		-30 ░C	80 C	Twinaxial			Braid	152.4 m	6000 in	Blue	93 %			78 Ohms	Polyolefin (PO)							Flame Retardant	1.93 mm	0.076 in
Cinch Connectivity Solutions Trompeter TWC-124-2	Copper, Tinned	-40 °C	80 C	Twinaxial	4.11 mm	0.162 in	Braid	152.4 m	6000 in	Blue	93 %	7	33 AWG	124 Ohms	Poly-Vinyl Chloride (PVC)		Copper, Tinned			6.22 mm	0.245 in
Cinch Connectivity Solutions Trompeter TWC-124-1A	Copper, Tinned	-40 °C	80 C	Twinaxial	2.16 mm	0.085 in	Braid	152.4 m	6000 in	Blue	93 %	7		124 Ohms	Poly-Vinyl Chloride (PVC)		Copper, Tinned			3.81 mm	0.15 in				38 AWG
