1057841-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT SMA JACK TO TNC JACK
Deep-Dive with AI
Search across all available documentation for this part.
1057841-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT SMA JACK TO TNC JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1057841-1 |
|---|---|
| Adapter Series | OSM to OST |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Female Socket, TNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Mounting Feature | Flange |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1057841 Series
CONN ADAPT SMA JACK TO TNC JACK
| Part | Conversion Type | Adapter Series | Convert From (Adapter End) | Body Material | Dielectric Material | Mounting Feature | Convert To (Adapter End) | Adapter Type | Center Gender | Style | Center Contact Plating | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1057841-1 | Between Series | OSM to OST | Female Socket, SMA Jack | Stainless Steel | Polytetrafluoroethylene (PTFE) | Flange | Female Socket, TNC Jack | Jack to Jack | Female to Female | Straight | Gold | Beryllium Copper |
Description
General part information
1057841 Series

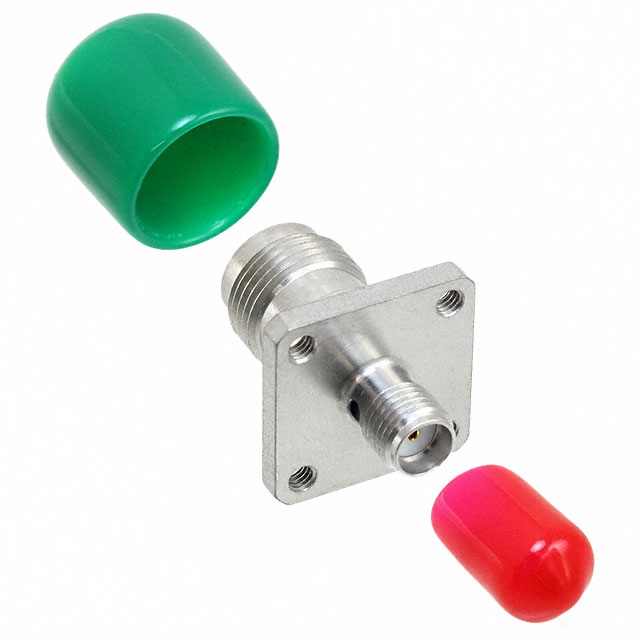

Adapter Coaxial Connector SMA Jack, Female Socket To TNC Jack, Female Socket
