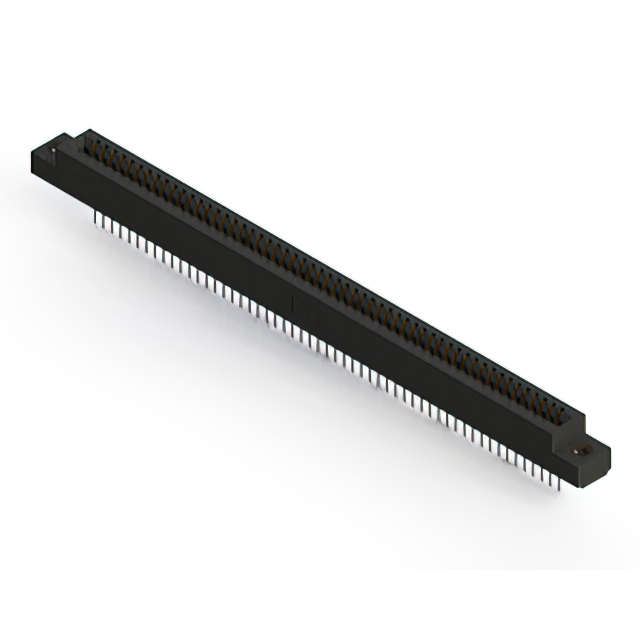

391-055-522-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 55POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-055-522-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 55POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-055-522-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 55 positions |
| Number of Positions/Bay/Row [custom] | 55 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
391-055 Series
| Part | Contact Type | Color | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows | Pitch [x] | Pitch [x] | Card Type | Termination | Number of Positions/Bay/Row [custom] | Contact Material | Termination Rows | Number of Positions | Material - Insulation | Gender | Read Out | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Semi Bellows | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Solder | 55 | Copper Alloy | 1 | 55 positions | Polyester Thermoplastic | Female | Single | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | ||
EDAC Inc. | Semi Bellows | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Solder | 55 | Copper Alloy | 1 | 55 positions | Polyester Thermoplastic | Female | Single | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 3.25 mm | 0.128 " |
EDAC Inc. | Semi Bellows | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Solder | 55 | Copper Alloy | 1 | 55 positions | Polyester Thermoplastic | Female | Single | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 3.96 mm | 0.156 in |
EDAC Inc. | Semi Bellows | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Solder | 55 | Copper Alloy | 1 | 55 positions | Polyester Thermoplastic | Female | Single | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | ||
EDAC Inc. | Semi Bellows | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Solder | 55 | Copper Alloy | 1 | 55 positions | Polyester Thermoplastic | Female | Single | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | ||
EDAC Inc. | Semi Bellows | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Solder | 55 | Copper Alloy | 1 | 55 positions | Polyester Thermoplastic | Female | Single | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 3.96 mm | 0.156 in |
EDAC Inc. | Semi Bellows | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Solder | 55 | Copper Alloy | 1 | 55 positions | Polyester Thermoplastic | Female | Single | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | ||
EDAC Inc. | Semi Bellows | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Solder | 55 | Copper Alloy | 1 | 55 positions | Polyester Thermoplastic | Female | Single | Floating Bobbin Flush Mount | -40 °C | 105 ░C | 2.95 mm | 0.116 in |
EDAC Inc. | Semi Bellows | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Solder | 55 | Copper Alloy | 1 | 55 positions | Polyester Thermoplastic | Female | Single | -40 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 25.27 | |
Description
General part information
391-055 Series
55 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
