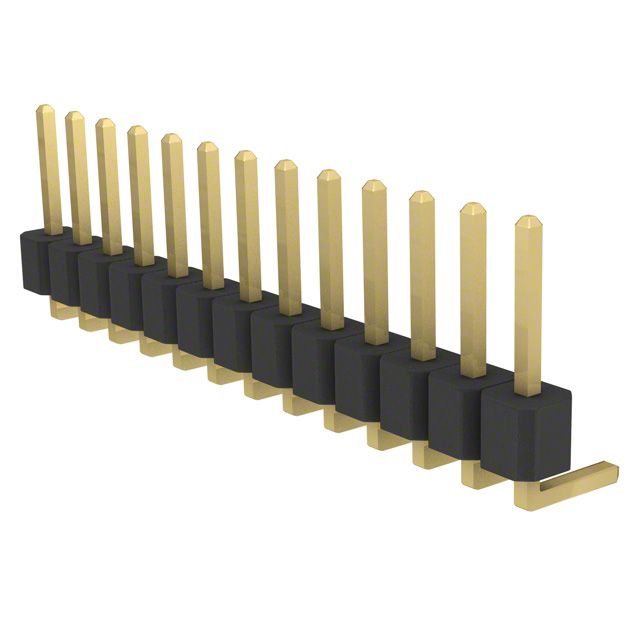

PRPC013SBAN-M71RC
ActiveSullins Connector Solutions
3A RIGHT-ANGLE GOLD 13P -40℃~+105℃ 2.54MM BLACK BRASS SINGLE ROW PUSH-PULL,P=2.54MM PIN HEADERS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRPC013SBAN-M71RC
ActiveSullins Connector Solutions
3A RIGHT-ANGLE GOLD 13P -40℃~+105℃ 2.54MM BLACK BRASS SINGLE ROW PUSH-PULL,P=2.54MM PIN HEADERS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRPC013SBAN-M71RC |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 13 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PRPC013 Series
| Part | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Connector Type | Contact Finish Thickness - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Style | Insulation Material | Contact Length - Mating [x] | Contact Length - Mating | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Finish Thickness - Mating | Overall Contact Length | Overall Contact Length | Pitch - Mating | Pitch - Mating | Contact Type | Contact Finish - Post | Number of Rows | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Insulation Color | Current Rating (Amps) | Contact Shape | Shrouding | Contact Material | Termination | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Contact Length - Mating [x] | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | UL94 V-0 | 0.12 in | 3.05 mm | 26 | Breakaway Header | Flash | 2.54 mm | 0.1 in | Through Hole | Board to Board Cable | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | Gold | -40 °C | 105 ░C | Push-Pull | Flash | 0.448 in | 11.39 mm | 0.1 in | 2.54 mm | Male Pin | Gold | 2 | All | 0.098 in | 2.5 mm | Black | 3 A | Square | Unshrouded | Brass | Solder | ||||||
Sullins Connector Solutions | UL94 V-0 | 26 | Breakaway Header | Flash | 2.54 mm | 0.1 in | Through Hole Right Angle | Board to Board Cable | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | Gold | -40 °C | 105 ░C | Push-Pull | Flash | 0.1 in | 2.54 mm | Male Pin | Gold | 2 | All | Black | 3 A | Square | Unshrouded | Brass | Solder | 0.22 in | 5.58 mm | 0.197 in | 5 mm | ||||||||
Sullins Connector Solutions | UL94 V-0 | 0.12 in | 3.05 mm | 13 | Breakaway Header | Flash | Through Hole | Board to Board Cable | Polybutylene Terephthalate (PBT) | 0.318 " | Gold | -40 °C | 105 ░C | Push-Pull | Flash | 0.537 " | 0.1 in | 2.54 mm | Male Pin | Gold | 1 | All | 0.098 in | 2.5 mm | Black | 3 A | Square | Unshrouded | Brass | Solder | 8.08 mm | 13.63 mm | ||||||||
Sullins Connector Solutions | UL94 V-0 | 0.12 in | 3.05 mm | 13 | Breakaway Header | Flash | Through Hole | Board to Board Cable | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | Gold | -40 °C | 105 ░C | Push-Pull | Flash | 0.448 in | 11.39 mm | 0.1 in | 2.54 mm | Male Pin | Gold | 1 | All | 0.098 in | 2.5 mm | Black | 3 A | Square | Unshrouded | Brass | Solder | ||||||||
Sullins Connector Solutions | UL94 V-0 | 0.12 in | 3.05 mm | 26 | Breakaway Header | Flash | 2.54 mm | 0.1 in | Through Hole | Board to Board Cable | Polybutylene Terephthalate (PBT) | 0.318 " | Gold | -40 °C | 105 ░C | Push-Pull | Flash | 0.537 " | 0.1 in | 2.54 mm | Male Pin | Gold | 2 | All | 0.098 in | 2.5 mm | Black | 3 A | Square | Unshrouded | Brass | Solder | 8.08 mm | 13.63 mm | ||||||
Sullins Connector Solutions | UL94 V-0 | 13 | Breakaway Header | Flash | Through Hole Right Angle | Board to Board Cable | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | Gold | -40 °C | 105 ░C | Push-Pull | Flash | 0.1 in | 2.54 mm | Male Pin | Gold | 1 | All | 0.098 in | 2.5 mm | Black | 3 A | Square | Unshrouded | Brass | Solder | 0.22 in | 5.58 mm | ||||||||||
Sullins Connector Solutions | UL94 V-0 | 26 | Breakaway Header | Flash | 2.54 mm | 0.1 in | Through Hole | Board to Board Cable | Polybutylene Terephthalate (PBT) | 0.318 " | Gold | -40 °C | 105 ░C | Push-Pull | Flash | 0.637 in | 16.17 mm | 0.1 in | 2.54 mm | Male Pin | Gold | 2 | All | 0.098 in | 2.5 mm | Black | 3 A | Square | Unshrouded | Brass | Solder | 0.22 in | 5.58 mm | 8.08 mm | ||||||
Sullins Connector Solutions | UL94 V-0 | 0.12 in | 3.05 mm | 13 | Breakaway Header | Flash | Through Hole Right Angle | Board to Board Cable | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | Gold | -40 °C | 105 ░C | Push-Pull | Flash | 0.1 in | 2.54 mm | Male Pin | Gold | 1 | All | 0.098 in | 2.5 mm | Black | 3 A | Square | Unshrouded | Brass | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PRPC013 Series
Connector Header Through Hole, Right Angle 13 position 0.100" (2.54mm)
