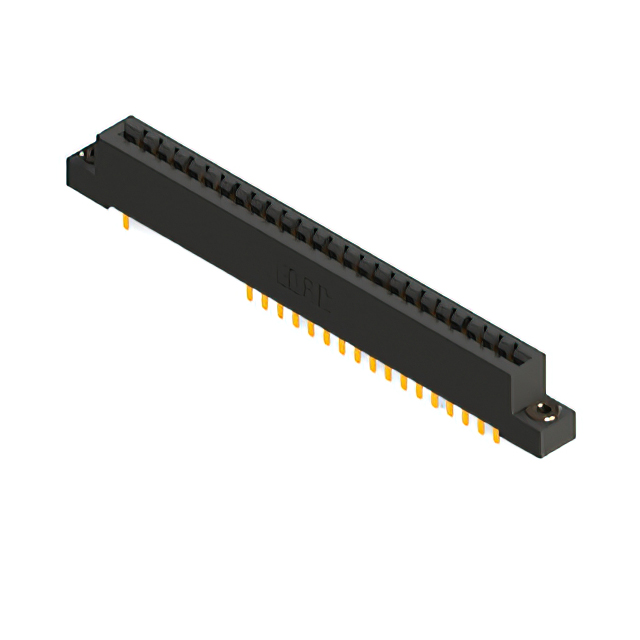

887-050-544-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 50POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-050-544-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 50POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-050-544-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	50
Number of Positions/Bay/Row [custom]	25
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

887-050 Series

...

Part	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Type	Contact Material	Number of Positions/Bay/Row [custom]	Read Out	Pitch [x]	Pitch [x]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Finish	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Termination	Termination Rows	Mounting Type	Flange Feature	Flange Feature	Features
EDAC Inc. 887-050-500-203	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	2	Cantilever	Copper Alloy	25	Dual	0.156 in	3.96 mm	Black	125 °C	-40 °C	Female	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Solder Eyelet(s)	2	Through Hole
EDAC Inc. 887-050-544-203	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	2	Cantilever	Copper Alloy	25	Dual	0.156 in	3.96 mm	Black	125 °C	-40 °C	Female	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Wire Wrap	2	Through Hole
EDAC Inc. 887-050-558-202	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	2	Cantilever	Copper Alloy	25	Dual	0.156 in	3.96 mm	Black	125 °C	-40 °C	Female	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Solder	2	Through Hole Right Angle
EDAC Inc. 887-050-558-808		4-40 Threaded Insert Top Mount Opening		Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	2	Cantilever	Copper Alloy	25	Dual	0.156 in	3.96 mm	Black	125 °C	-40 °C	Female	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Solder	2	Through Hole Right Angle
EDAC Inc. 887-050-559-208		4-40 Flush Mount Threaded Insert Top Opening		Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	2	Cantilever	Copper Alloy	25	Dual	0.156 in	3.96 mm	Black	125 °C	-40 °C	Female	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Solder	2	Through Hole Right Angle
EDAC Inc. 887-050-559-802				Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	2	Cantilever	Copper Alloy	25	Dual	0.156 in	3.96 mm	Black	125 °C	-40 °C	Female	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Solder	2	Through Hole Right Angle	3.25 mm	0.128 in
EDAC Inc. 887-050-560-208		4-40 Flush Mount Threaded Insert Top Opening		Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	2	Cantilever	Copper Alloy	25	Dual	0.156 in	3.96 mm	Black	125 °C	-40 °C	Female	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Solder	2	Board Edge Straddle Mount			Card Extender
EDAC Inc. 887-050-556-212	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	2	Cantilever	Copper Alloy	25	Dual	0.156 in	3.96 mm	Black	125 °C	-40 °C	Female	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Solder	2	Board Edge Straddle Mount			Card Extender
EDAC Inc. 887-050-544-808		4-40 Threaded Insert Top Mount Opening		Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	2	Cantilever	Copper Alloy	25	Dual	0.156 in	3.96 mm	Black	125 °C	-40 °C	Female	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Wire Wrap	2	Through Hole
EDAC Inc. 887-050-556-202	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	2	Cantilever	Copper Alloy	25	Dual	0.156 in	3.96 mm	Black	125 °C	-40 °C	Female	Gold	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	50	Solder	2	Board Edge Straddle Mount			Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 83.17

Description

General part information

887-050 Series

50 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
