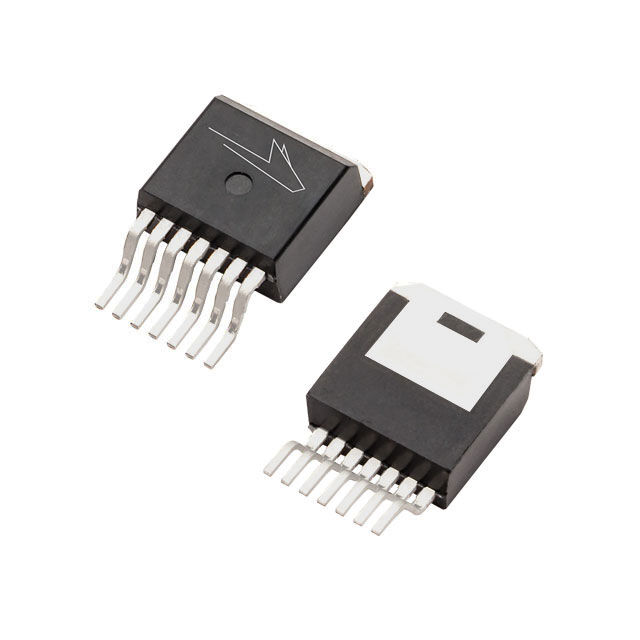

C3M0032120J1-TR

Active

Wolfspeed

TRANS MOSFET N-CH SIC 1.2KV 68A 8-PIN(7+TAB) TO-263 T/R

Search across all available documentation for this part.

Active

Wolfspeed

TRANS MOSFET N-CH SIC 1.2KV 68A 8-PIN(7+TAB) TO-263 T/R

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 1200 V 68A (Tc) 277W (Tc) Surface Mount TO-263-7

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	C3M0032120J1-TR	C3M0032120 Series

Current - Continuous Drain (Id) @ 25°C	68 A	63 - 68 A
Drain to Source Voltage (Vdss)	1200 V	1200 V
Drive Voltage (Max Rds On, Min Rds On)	15 V	15 V
FET Type	N-Channel	N-Channel
Gate Charge (Qg) (Max) @ Vgs	-	118 nC
Gate Charge (Qg) (Max) @ Vgs [Max]	111 nC	111 nC
Input Capacitance (Ciss) (Max) @ Vds	3424 pF	3424 pF
Input Capacitance (Ciss) (Max) @ Vds	-	3357 pF
Mounting Type	Surface Mount	Through Hole, Surface Mount
Operating Temperature [Max]	150 °C	150 - 175 °C
Operating Temperature [Min]	-40 °C	-40 C
Package / Case	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA	TO-247-4, D2PAK (7 Leads + Tab), TO-263-8, TO-263CA
Power Dissipation (Max)	277 W	277 - 283 W
Rds On (Max) @ Id, Vgs	43 mOhm	43 mOhm
Rds On (Max) @ Id, Vgs	-	43 mOhm
Supplier Device Package	TO-263-7	TO-247-4L, TO-263-7
Vgs (Max) [Max]	15 V	15 V
Vgs (Max) [Min]	-4 V	-4 V
Vgs(th) (Max) @ Id	3.6 V	3.6 V

TRANS MOSFET N-CH SIC 1.2KV 69A 4-PIN(4+TAB) TO-247 TUBE

Part	Power Dissipation (Max)	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Vgs(th) (Max) @ Id	Vgs (Max) [Min]	Vgs (Max) [Max]	FET Type	Package / Case	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs
Wolfspeed C3M0032120K	283 W	Through Hole	63 A	118 nC	1200 V	15 V	43 mOhm	3357 pF	-40 C	175 °C	TO-247-4L	3.6 V	-4 V	15 V	N-Channel	TO-247-4
Wolfspeed C3M0032120J1-TR	277 W	Surface Mount	68 A		1200 V	15 V			-40 °C	150 °C	TO-263-7	3.6 V	-4 V	15 V	N-Channel	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA	111 nC	3424 pF	43 mOhm
Wolfspeed C3M0032120J1	277 W	Surface Mount	68 A		1200 V	15 V			-40 °C	150 °C	TO-263-7	3.6 V	-4 V	15 V	N-Channel	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA	111 nC	3424 pF	43 mOhm
