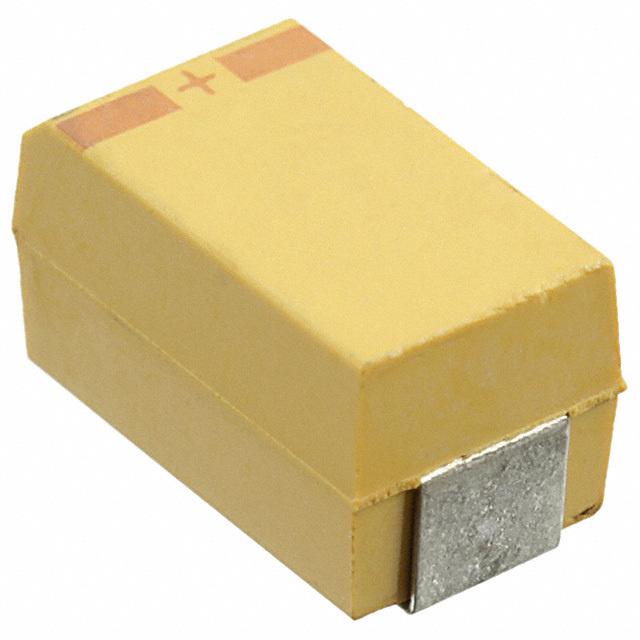

T493X106K050BH6110

Active

KEMET

10.0UF 50.0V ROHS COMPLIANT: NO

Search across all available documentation for this part.

Active

KEMET

10.0UF 50.0V ROHS COMPLIANT: NO

Technical Specifications

Parameters and characteristics for this part

Specification	T493X106K050BH6110

Capacitance	10 µF
ESR (Equivalent Series Resistance)	700 mOhm
Failure Rate	B (0.1%)
Features	High Reliability
Height - Seated (Max) [Max]	0.169 "
Height - Seated (Max) [Max]	4.3 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	X
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Ratings	COTS
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	10 %
Type	Molded
Voltage - Rated	50 VDC

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Features	Voltage - Rated	Capacitance	Package / Case	Package / Case	Type	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Failure Rate	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type
KEMET T493X686K020BH6420	0.169 "	4.3 mm	2000 Hrs	High Reliability	20 V	68 µF	7343 Metric	2917	Molded	150 mOhms	X	4.3 mm	0.287 "	7.3 mm	0.169 "	COTS	B (0.1%)	-55 °C	125 °C	10 %	Surface Mount
KEMET T493X106K050BH6110	0.169 "	4.3 mm	2000 Hrs	High Reliability	50 VDC	10 µF	7343 Metric	2917	Molded	700 mOhm	X	4.3 mm	0.287 "	7.3 mm	0.169 "	COTS	B (0.1%)	-55 °C	125 °C	10 %	Surface Mount
KEMET T493X106K063AT6110	0.169 "	4.3 mm	2000 Hrs	High Reliability	63 V	10 µF	7343 Metric	2917	Molded	600 mOhm	X	4.3 mm	0.287 "	7.3 mm	0.169 "	COTS		-55 °C	125 °C	10 %	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF Molded Tantalum Capacitors 50 V 2917 (7343 Metric) 700mOhm
