QH19028RC

Active

APEM

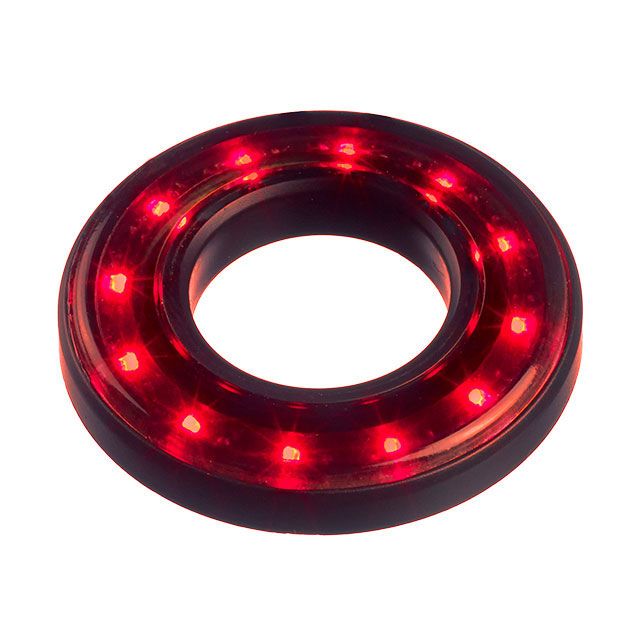

19MM HALO BLACK BODY TINTED LENS

Search across all available documentation for this part.

Active

APEM

19MM HALO BLACK BODY TINTED LENS

Technical Specifications

Parameters and characteristics for this part

Specification	QH19028RC

Current [Max]	20 mA
Current [Min]	4.2 mA
Ingress Protection	IP67
Lamp Color	Red
Lens Color	Red
Lens Size [diameter]	38.5 mm
Lens Style	Ring with Domed Top
Lens Transparency	Clear
Panel Cutout Dimensions [custom]	19 mm
Panel Cutout Dimensions [custom]	0.748 in
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Voltage [Max]	26.4 V
Voltage [Min]	12 V

Part	Panel Cutout Shape	Lens Style	Type	Lens Transparency	Lamp Color	Voltage [Min]	Voltage [Max]	Ingress Protection	Lens Color	Ratings	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Current [Max]	Current [Min]	Lens Size [diameter]	Termination Style
APEM QH19028RC	Round	Ring with Domed Top	LED	Clear	Red	12 V	26.4 V	IP67	Red	DC	19 mm	0.748 in	20 mA	4.2 mA	38.5 mm	Wire Leads - 7.87" (200.00mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Clear 12V ~ 26.4V 4.2 ~ 20mA Wire Leads - 7.87" (200.00mm)
