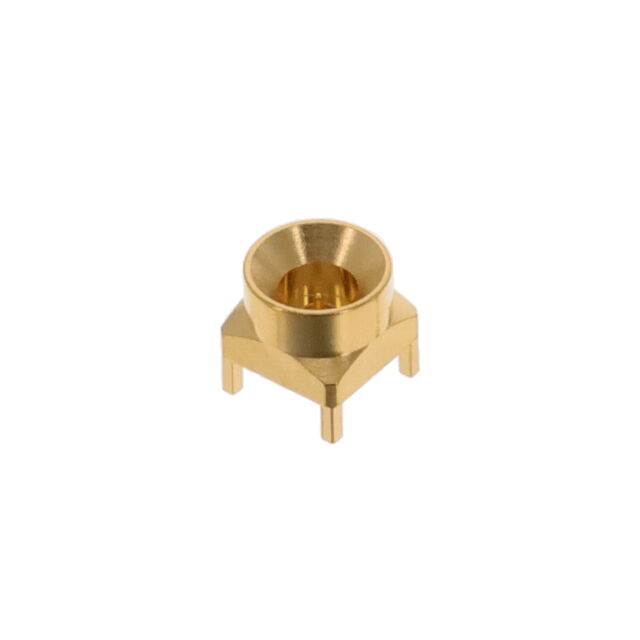

SMP-MSCM-PCT-10

Active

AMPHENOL RF

RF CONNECTOR SMP STRAIGHT PCB CA

Search across all available documentation for this part.

Active

AMPHENOL RF

RF CONNECTOR SMP STRAIGHT PCB CA

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SMP PLUG STR 50 OHM PCB

Part	Center Contact Plating	Mating Cycles	Mounting Type	Frequency - Max [Max]	Number of Ports	Center Contact Material	Shield Termination	Contact Termination	Fastening Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Material	Features	Body Finish	Connector Type	Dielectric Material
AMPHENOL RF SMP-MSCM-PCT-2	Gold	500	Through Hole	6000 MHz	1	Brass	Solder	Solder	Snap-On	Gold	-65 ░C	165 °C	50 Ohms	Brass	Catcher's Mitt	Gold	Male Pin, Plug
AMPHENOL RF SMP-MSCM-PCS-12	Gold	500	Surface Mount	20 GHz	1	Brass	Solder	Solder	Snap-On	Gold	-40 °C	165 °C	50 Ohms	Brass	Catcher's Mitt	Gold	Jack, Male Pin	Liquid Crystal Polymer (LCP)
AMPHENOL RF SMP-MSCM-PCS12T	Gold	500	Surface Mount	20 GHz	1	Brass	Solder	Solder	Snap-On	Gold	-40 °C	165 °C	50 Ohms	Brass	Catcher's Mitt	Gold	Jack, Male Pin	Liquid Crystal Polymer (LCP)
AMPHENOL RF SMP-MSCM-PCS11T	Gold	1000	Surface Mount	18 GHz	1	Brass	Solder	Solder	Snap-On	Gold	-65 ░C	165 °C	50 Ohms	Brass	Catcher's Mitt	Gold	Jack, Male Pin	Liquid Crystal Polymer (LCP)
AMPHENOL RF SMP-MSCM-PCT10T	Gold	500	Through Hole	20 GHz	1	Brass	Solder	Solder	Snap-On	Gold	-40 °C	85 °C	50 Ohms	Brass	Catcher's Mitt	Gold	Jack, Male Pin	Liquid Crystal Polymer (LCP)
AMPHENOL RF SMP-MSCM-PCT-10	Gold	500	Through Hole	20 GHz	1	Brass	Solder	Solder	Snap-On	Gold	-40 °C	85 °C	50 Ohms	Brass	Catcher's Mitt	Gold	Jack, Male Pin	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Jack, Male Pin 50 Ohms Through Hole Solder

Technical documentation and resources

No documents available
