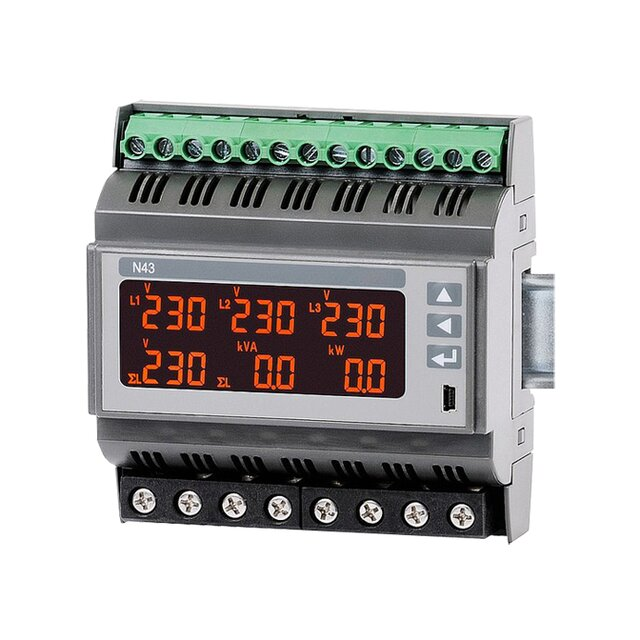

N43 11100U1

Active

Sifam Tinsley Instrumentation Inc

MULTI METER 1-5A 100V LCD DIN RL

Search across all available documentation for this part.

Active

Sifam Tinsley Instrumentation Inc

MULTI METER 1-5A 100V LCD DIN RL

Technical Specifications

Parameters and characteristics for this part

Specification	N43 11100U1

Display Characters - Height [z]	7 mm
Display Characters - Height [z]	0.275 in
Display Type	LCD - Red Characters, Backlight
Features	Pulse Meter
Ingress Protection	IP50
Measuring Type	Current (3-Phase), Wattage, Voltage
Mounting Type	DIN Rail
Number of Characters Per Row [custom]	9, 6
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Screw Terminal
Type	Multifunction Meter (Current, Voltage, Frequency, Power)
Voltage - Supply [Max]	253 VAC/DC, 300 VDC
Voltage - Supply [Min]	85 VAC, 90 VDC
Weight	300.28 g
Weight	0.662 lb

MULTI METER 1-5A 100V LCD DIN RL

Part	Termination Style	Weight	Weight	Type	Display Type	Number of Characters Per Row [custom]	Features	Display Characters - Height [z]	Display Characters - Height [z]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Measuring Type	Mounting Type
Sifam Tinsley Instrumentation Inc N43 11100U1	Screw Terminal	300.28 g	0.662 lb	Multifunction Meter (Current, Voltage, Frequency, Power)	LCD - Red Characters, Backlight	6, 9	Pulse Meter	7 mm	0.275 in	55 °C	-10 °C	253 VAC/DC, 300 VDC	85 VAC, 90 VDC	IP50	Current (3-Phase), Voltage, Wattage	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 250.00

General part information

Multifunction Meter (Current, Voltage, Frequency, Power) LCD - Red Characters, Backlight Display DIN Rail
