Q-0E05B0008018i

Active

Amphenol Custom Cable

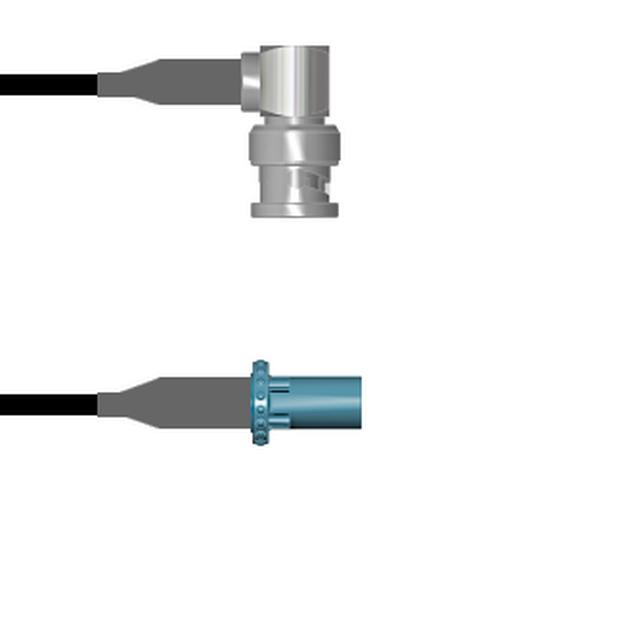

CBL ASSY BNC-FAKRA PLUG-PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0E05B0008018i

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA PLUG-PLUG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0E05B0008018i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0E05B0 Series

Part	1st Connector	Frequency - Max [Max]	Length	Length	Length	Features	Overall Impedance	Cable Type	2nd Connector	2nd Connector Mounting Type	Color	1st Connector Mounting Type	1st Contact Gender	Style	2nd Contact Gender	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0E05B00082.5M	BNC Plug Right Angle	3 GHz	8.2 '	98.4 in	2.5 m	Shielded	50 Ohms	RG-58	Fakra Plug	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	Male	BNC to Fakra	Male
Amphenol Custom Cable Q-0E05B0008060i	BNC Plug Right Angle	3 GHz	5 ft	5 '	1.5 m	Shielded	50 Ohms	RG-58	Fakra Plug	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	Male	BNC to Fakra	Male
Amphenol Custom Cable Q-0E05B0008072i	BNC Plug Right Angle	3 GHz	6 ft	72 in	1.8 m	Shielded	50 Ohms	RG-58	Fakra Plug	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	Male	BNC to Fakra	Male
Amphenol Custom Cable Q-0E05B0008108i	BNC Plug Right Angle	3 GHz	9 ft	108 in	2.7 m	Shielded	50 Ohms	RG-58	Fakra Plug	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	Male	BNC to Fakra	Male
Amphenol Custom Cable Q-0E05B0008.25M	BNC Plug Right Angle	3 GHz				Shielded	50 Ohms	RG-58	Fakra Plug	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	Male	BNC to Fakra	Male	9.843 "	250 mm
Amphenol Custom Cable Q-0E05B00080.5M	BNC Plug Right Angle	3 GHz		19.69 "	50 cm	Shielded	50 Ohms	RG-58	Fakra Plug	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	Male	BNC to Fakra	Male
Amphenol Custom Cable Q-0E05B0008018i	BNC Plug Right Angle	3 GHz				Shielded	50 Ohms	RG-58	Fakra Plug	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	Male	BNC to Fakra	Male		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0E05B0008002M	BNC Plug Right Angle	3 GHz	6.6 ft	78.7 in	2 m	Shielded	50 Ohms	RG-58	Fakra Plug	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	Male	BNC to Fakra	Male
Amphenol Custom Cable Q-0E05B0008012i	BNC Plug Right Angle	3 GHz		12 "	304.8 mm	Shielded	50 Ohms	RG-58	Fakra Plug	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	Male	BNC to Fakra	Male
Amphenol Custom Cable Q-0E05B0008.75M	BNC Plug Right Angle	3 GHz		29.53 "	750 mm	Shielded	50 Ohms	RG-58	Fakra Plug	Free Hanging (In-Line)	Black	Free Hanging (In-Line)	Male	BNC to Fakra	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 76.42
		25	$ 74.94
		50	$ 73.45
		100	$ 71.97
		250	$ 70.48

Description

General part information

Q-0E05B0 Series

Cable Assembly Coaxial BNC to Fakra RG-58 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
