TNG1-4-78

Active

Cinch Connectivity Solutions Trompeter

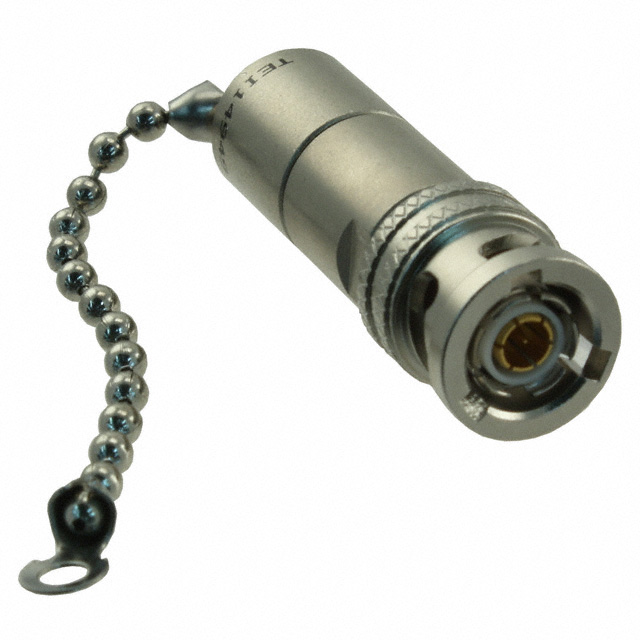

CONN TERMINATOR JACK TRB 78OHM

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TERMINATOR JACK TRB 78OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TNG1-4-78	TNG1 Series

Connector Style	TRB	TRB, BNC
Connector Type	Female Socket, Jack	Female Socket, Jack, Male Pin, Plug
Features	Chain, Three Lug	Chain, Three Lug, Lanyard
Impedance	78 Ohms	0 - 78 Ohms
Mounting Type	Free Hanging, Cap	Free Hanging, Cap

CONN TERMINATOR JACK TRB 78OHM

Part	Impedance	Mounting Type	Connector Type	Connector Style	Features
Cinch Connectivity Solutions Trompeter TNG1-4-78	78 Ohms	Cap, Free Hanging	Female Socket, Jack	TRB	Chain, Three Lug
Cinch Connectivity Solutions Trompeter TNG1-7-78	78 Ohms	Cap, Free Hanging	Male Pin, Plug	BNC	Chain
Cinch Connectivity Solutions Trompeter TNG1-14-78-D3	50 Ohms	Cap, Free Hanging	Male Pin, Plug	BNC	Lanyard
Cinch Connectivity Solutions Trompeter TNG1-1-78	78 Ohms	Cap, Free Hanging	Female Socket, Jack	TRB	Three Lug
Cinch Connectivity Solutions Trompeter TNG1-6-0	0 Ohms	Cap, Free Hanging	Male Pin, Plug	BNC	Chain
Cinch Connectivity Solutions Trompeter TNG1-2-78	78 Ohms	Cap, Free Hanging	Male Pin, Plug	BNC	Chain

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Jack, Female Socket TRB 78 Ohms

Technical documentation and resources

No documents available
