Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TN3050HP-12L2Y | TN3050HP-12L2Y Series |
|---|---|---|
| Current - Gate Trigger (Igt) (Max) | - | 50 mA |
| Current - Hold (Ih) (Max) | - | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - | 300 - 330 A |
| Current - Off State (Max) | - | 5 µA |
| Current - On State (It (AV)) (Max) | - | 19 A |
| Current - On State (It (RMS)) (Max) | - | 30 A |
| Grade | - | Automotive |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | 150 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | D2PAK (7 Leads + Tab), TO-263-8, TO-263CA |
| Qualification | - | AEC-Q101 |
| SCR Type | - | Standard Recovery |
| Supplier Device Package | - | HU3PAK |
| Voltage - Gate Trigger (Vgt) (Max) | - | 1.3 V |
| Voltage - Off State | - | 1.2 kV |
| Voltage - On State (Vtm) (Max) | - | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.18 | |
| 10 | $ 5.52 | |||
| 25 | $ 4.97 | |||
| 100 | $ 4.53 | |||
| 250 | $ 4.08 | |||
| Digi-Reel® | 1 | $ 6.18 | ||
| 10 | $ 5.52 | |||
| 25 | $ 4.97 | |||
| 100 | $ 4.53 | |||
| 250 | $ 4.08 | |||
| Tape & Reel (TR) | 600 | $ 3.67 | ||
| 1200 | $ 3.09 | |||
| 3000 | $ 2.94 | |||
TN3050HP-12L2Y Series
30 A 1200 V automotive grade SCR Thyristor in HU3PAK package
| Part | Current - Gate Trigger (Igt) (Max) [Max] | Mounting Type | Voltage - Gate Trigger (Vgt) (Max) [Max] | Current - On State (It (RMS)) (Max) [Max] | Qualification | Current - Hold (Ih) (Max) [Max] | SCR Type | Current - Non Rep. Surge 50, 60Hz (Itsm) | Supplier Device Package | Grade | Voltage - Off State | Package / Case | Current - Off State (Max) [Max] | Voltage - On State (Vtm) (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Current - On State (It (AV)) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TN3050HP-12L2Y | |||||||||||||||||
STMicroelectronics TN3050HP-12L2Y | 50 mA | Surface Mount | 1.3 V | 30 A | AEC-Q101 | 100 mA | Standard Recovery | 300 A, 330 A | HU3PAK | Automotive | 1.2 kV | D2PAK (7 Leads + Tab), TO-263-8, TO-263CA | 5 µA | 1.65 V | 150 °C | -40 °C | 19 A |
Description
General part information
TN3050HP-12L2Y Series
This device is an automotive grade SCR Thyristor designed for applications such as automotive and stationary battery chargers.
Rated for 30 ARMSpower switching, this SCR Thyristor offers superior performance in terms of peak voltage robustness (up to 1400 V) and surge current handling (sine wave pulse up to 300 A). Its key features allow the design of functions such as a 42 ARMSAC switch (dual back-to-back SCRs) and a 38 A av. AC-DC controlled rectifier bridge.

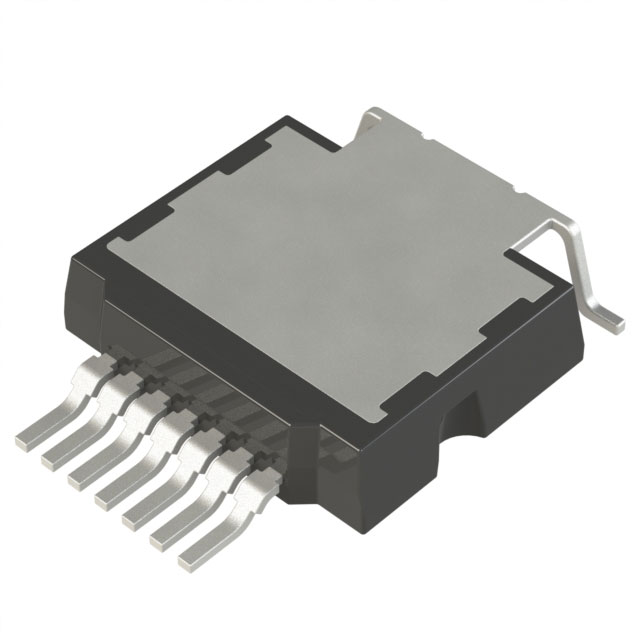

Available in HU3PAK package, it is ideal for compact SMD designs on surface mount boards or insulated metal substrate boards and and top-side cooling.
