325-048-500-108
ActiveEDAC Inc.

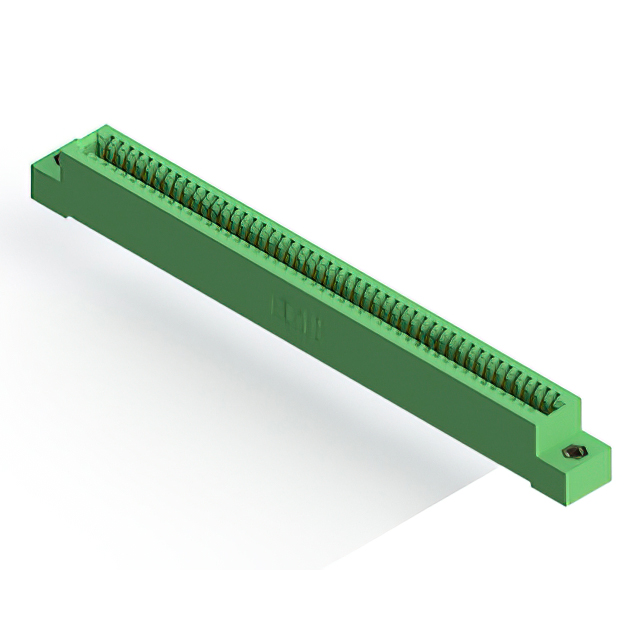

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 48 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
325-048-500-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 48 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-048-500-108 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Number of Positions/Bay/Row [custom] | 48 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
325-048 Series
| Part | Termination Rows | Read Out | Flange Feature | Material - Insulation | Contact Finish | Pitch [x] | Pitch [x] | Color | Gender | Card Thickness | Card Thickness | Number of Rows | Card Type | Number of Positions/Bay/Row [custom] | Contact Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Dual | Flush Mount M3 Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Gold | 2.54 mm | 0.1 in | Green | Female | 3.18 mm | 0.125 in | 2 | Non Specified - Dual Edge | 24 | Cantilever | Copper Alloy | 10 Áin | 0.25 Ám | 48 | Solder | 125 °C | -65 ░C | Through Hole | ||
EDAC Inc. | 2 | Dual | Diallyl Phthalate (DAP) | Gold | 2.54 mm | 0.1 in | Green | Female | 3.18 mm | 0.125 in | 2 | Non Specified - Dual Edge | 24 | Cantilever | Copper Alloy | 10 Áin | 0.25 Ám | 48 | Solder Eyelet(s) | 125 °C | -65 ░C | Through Hole | |||
EDAC Inc. | 2 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Gold | 2.54 mm | 0.1 in | Green | Female | 3.18 mm | 0.125 in | 2 | Non Specified - Dual Edge | 24 | Cantilever | Copper Alloy | 10 Áin | 0.25 Ám | 48 | Wire Wrap | 125 °C | -65 ░C | Through Hole | ||
EDAC Inc. | 1 | Single | Flush Mount M3 Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Gold | 2.54 mm | 0.1 in | Green | Female | 3.18 mm | 0.125 in | 1 | Non Specified - Single Edge | 48 | Cantilever | Copper Alloy | 10 Áin | 0.25 Ám | 48 | Solder Eyelet(s) | 125 °C | -65 ░C | Through Hole | ||
EDAC Inc. | 1 | Single | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | Gold | 2.54 mm | 0.1 in | Green | Female | 3.18 mm | 0.125 in | 1 | Non Specified - Single Edge | 48 | Cantilever | Copper Alloy | 10 Áin | 0.25 Ám | 48 | Wire Wrap | 125 °C | -65 ░C | Through Hole | 0.16 in | 4.06 mm |
EDAC Inc. | 2 | Dual | Flush Mount M3 Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Gold | 2.54 mm | 0.1 in | Green | Female | 3.18 mm | 0.125 in | 2 | Non Specified - Dual Edge | 24 | Cantilever | Copper Alloy | 10 Áin | 0.25 Ám | 48 | Solder Eyelet(s) | 125 °C | -65 ░C | Through Hole | ||
EDAC Inc. | 2 | Dual | Diallyl Phthalate (DAP) | Gold | 2.54 mm | 0.1 in | Green | Female | 3.18 mm | 0.125 in | 2 | Non Specified - Dual Edge | 24 | Cantilever | Copper Alloy | 10 Áin | 0.25 Ám | 48 | Solder | 125 °C | -65 ░C | Through Hole | |||
EDAC Inc. | 2 | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Gold | 2.54 mm | 0.1 in | Green | Female | 3.18 mm | 0.125 in | 2 | Non Specified - Dual Edge | 24 | Cantilever | Copper Alloy | 10 Áin | 0.25 Ám | 48 | Solder | 125 °C | -65 ░C | Through Hole | ||
EDAC Inc. | 1 | Single | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Gold | 2.54 mm | 0.1 in | Green | Female | 3.18 mm | 0.125 in | 1 | Non Specified - Single Edge | 48 | Cantilever | Copper Alloy | 10 Áin | 0.25 Ám | 48 | Solder Eyelet(s) | 125 °C | -65 ░C | Through Hole | ||
EDAC Inc. | 2 | Dual | Diallyl Phthalate (DAP) | Gold | 2.54 mm | 0.1 in | Green | Female | 3.18 mm | 0.125 in | 2 | Non Specified - Dual Edge | 24 | Cantilever | Copper Alloy | 10 Áin | 0.25 Ám | 48 | Wire Wrap | 125 °C | -65 ░C | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
325-048 Series
48 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
