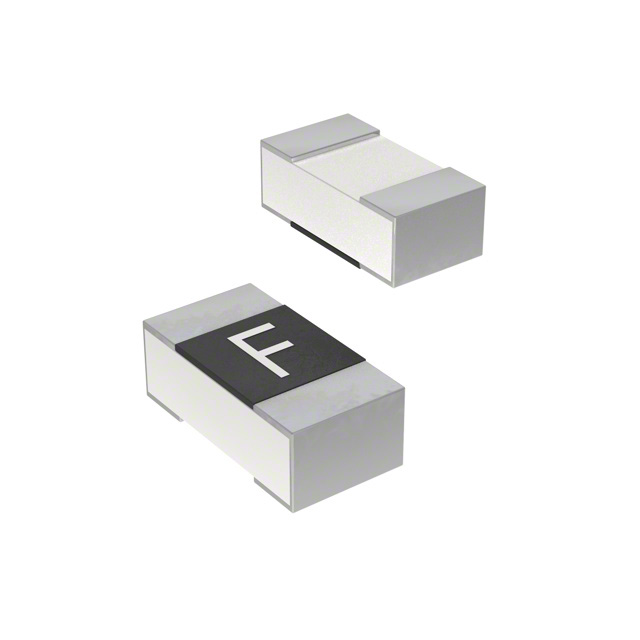

SF-0402S300-2 - SF-0402 Series

SF-0402S300-2

Active
Bourns Inc.

FUSE, SURFACE MOUNT, 3 A, SLOW BLOW, 32 VDC, 0402 [1005 METRIC], SINGLFUSE SF-0402S SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
SF-0402S300-2 - SF-0402 Series

SF-0402S300-2

Active
Bourns Inc.

FUSE, SURFACE MOUNT, 3 A, SLOW BLOW, 32 VDC, 0402 [1005 METRIC], SINGLFUSE SF-0402S SERIES

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSF-0402S300-2
Approval AgencyUL
Breaking Capacity @ Rated Voltage35 A
Current Rating (Amps)3 A
DC Cold Resistance0.015 Ohms
Fuse TypeBoard Mount
Mounting TypeSurface Mount
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Package / Case0402 (1005 Metric)
Response TimeSlow Blow
Size / Dimension [x]1 mm
Size / Dimension [x]0.039 in
Size / Dimension [y]0.52 mm
Size / Dimension [y]0.02 in
Size / Dimension [z]0.35 mm
Size / Dimension [z]0.014 "
Voltage Rating - DC24 V

SF-0402 Series

PartOperating Temperature [Max]Operating Temperature [Min]Approval AgencyFuse TypeMounting TypeCurrent Rating (Amps)Package / CaseResponse TimeBreaking Capacity @ Rated VoltageMelting I²tSize / Dimension [z]Size / Dimension [x]Size / Dimension [x]Size / Dimension [y]Size / Dimension [y]Size / Dimension [z]Voltage Rating - DCMelting I˛tDC Cold Resistance
Bourns Inc.
SF-0402FP160-2
150 °C
-20 C
UL
Board Mount
Surface Mount
1.6 A
0402 (1005 Metric)
Fast Blow
35 A
0.01672
0.35 mm
1 mm
0.039 in
0.52 mm
0.02 in
0.014 "
32 V
Bourns Inc.
SF-0402FP150F-2
90 °C
-55 °C
UL
Board Mount
Surface Mount
1.5 A
0402 (1005 Metric)
Fast Blow
35 A
0.33 mm
1 mm
0.039 in
0.51 mm
0.02 in
0.013 in
35 V
0.081
40 mOhms
Bourns Inc.
SF-0402S400M-2
125 °C
-55 °C
Board Mount
Surface Mount
4 A
0402 (1005 Metric)
Slow Blow
35 A
0.21
0.51 mm
1 mm
0.039 in
0.51 mm
0.02 in
0.02 "
24 V
0.014 Ohms
Bourns Inc.
SF-0402FP020F-2
90 °C
-55 °C
UL
Board Mount
Surface Mount
0.2 A
0402 (1005 Metric)
Fast Blow
35 A
0.33 mm
1 mm
0.039 in
0.51 mm
0.02 in
0.013 in
35 V
0.0017
0.6 Ohms
Bourns Inc.
SF-0402F200-2
105 ░C
-20 C
UL
Board Mount
Surface Mount
2 A
0402 (1005 Metric)
Fast Blow
35 A
0.35 mm
1 mm
0.039 in
0.52 mm
0.02 in
0.014 "
32 V
0.01983
0.033 Ohms
Bourns Inc.
SF-0402FP125-2
150 °C
-20 C
UL
Board Mount
Surface Mount
1.25 A
0402 (1005 Metric)
Fast Blow
35 A
0.01344
0.35 mm
1 mm
0.039 in
0.52 mm
0.02 in
0.014 "
32 V
Bourns Inc.
SF-0402FP175F-2
90 °C
-55 °C
UL
Board Mount
Surface Mount
1.75 A
0402 (1005 Metric)
Fast Blow
35 A
0.33 mm
1 mm
0.039 in
0.51 mm
0.02 in
0.013 in
35 V
0.092
0.034 Ohms
Bourns Inc.
SF-0402S150M-2
125 °C
-55 °C
Board Mount
Surface Mount
1.5 A
0402 (1005 Metric)
Slow Blow
35 A
0.51 mm
1 mm
0.039 in
0.51 mm
0.02 in
0.02 "
24 V
0.05
0.056 Ohms
Bourns Inc.
SF-0402FP025F-2
90 °C
-55 °C
UL
Board Mount
Surface Mount
0.25 A
0402 (1005 Metric)
Fast Blow
35 A
0.33 mm
1 mm
0.039 in
0.51 mm
0.02 in
0.013 in
35 V
0.0035
0.33 Ohms
Bourns Inc.
SF-0402S300-2
105 ░C
-40 °C
UL
Board Mount
Surface Mount
3 A
0402 (1005 Metric)
Slow Blow
35 A
0.35 mm
1 mm
0.039 in
0.52 mm
0.02 in
0.014 "
24 V
0.015 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.59
5$ 0.57
10$ 0.54
50$ 0.44
100$ 0.37
250$ 0.36
500$ 0.33
Digi-Reel® 1$ 0.59
5$ 0.57
10$ 0.54
50$ 0.44
100$ 0.37
250$ 0.36
500$ 0.33
Tape & Reel (TR) 10000$ 0.33
LCSCPiece 1$ 0.74
200$ 0.29
500$ 0.28
1000$ 0.27
NewarkEach (Supplied on Cut Tape) 1$ 0.98
25$ 0.93
100$ 0.84
250$ 0.76
500$ 0.69
1000$ 0.57
2500$ 0.51

Description

General part information

SF-0402 Series

3 A AC 24 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0402 (1005 Metric)
