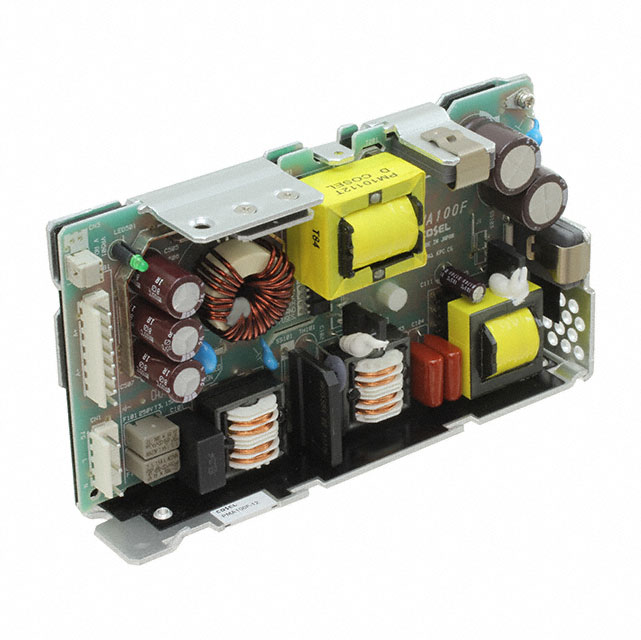

Specification	PMA100F-12

Applications	Medical
Approval Agency	cURus, TUV, CE
Current - Output 1	8.5 A
Efficiency	83 %
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Size / Dimension Height	3.66 in
Size / Dimension Length	6.61 in
Size / Dimension Width	1.34 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	2000 V
Voltage - Output 1	12 V

PMA100F Series

Part	Minimum Load Required	Applications	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Isolation	Efficiency	Mounting Type	Current - Output 1	Voltage - Output 1	Number of Outputs	Type	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum
Cosel USA, Inc. PMA100F-48-R	No	Medical	3.66 in	6.61 in	1.34 in	2000 V	86 %	Chassis Mount	2.1 A	48 V	1	Open Frame	CE cURus TUV	70 °C	-10 °C	85 VAC	264 V
Cosel USA, Inc. PMA100F-12-N	No	Medical	3.66 in	6.61 in	1.34 in	2000 V	83 %	Chassis Mount	8.5 A	12 V	1	Enclosed	CE cURus TUV	70 °C	-10 °C	85 VAC	264 V
Cosel USA, Inc. PMA100F-24-RN	No	Medical	3.66 in	6.61 in	1.34 in	2000 V	86 %	Chassis Mount	4.5 A	24 V	1	Enclosed	CE cURus TUV	70 °C	-10 °C	85 VAC	264 V
Cosel USA, Inc. PMA100F-3R3-TN	No	Medical	3.66 in	6.61 in	1.34 in	2000 V	78 %	Chassis Mount	20 A	3.3 V	1	Enclosed	CE cURus TUV	70 °C	-10 °C	85 VAC	264 V
Cosel USA, Inc. PMA100F-3R3	No	Medical	3.66 in	6.61 in	1.34 in	2000 V	78 %	Chassis Mount	20 A	3.3 V	1	Open Frame	CE cURus TUV	70 °C	-10 °C	85 VAC	264 V
Cosel USA, Inc. PMA100F-48-T1N	No	Medical	3.66 in	6.61 in	1.34 in	2000 V	86 %	Chassis Mount	2.1 A	48 V	1	Enclosed	CE cURus TUV	70 °C	-10 °C	85 VAC	264 V
Cosel USA, Inc. PMA100F-12-TN	No	Medical	3.66 in	6.61 in	1.34 in	2000 V	83 %	Chassis Mount	8.5 A	12 V	1	Enclosed	CE cURus TUV	70 °C	-10 °C	85 VAC	264 V
Cosel USA, Inc. PMA100F-24-R	No	Medical	3.66 in	6.61 in	1.34 in	2000 V	86 %	Chassis Mount	4.5 A	24 V	1	Open Frame	CE cURus TUV	70 °C	-10 °C	85 VAC	264 V
Cosel USA, Inc. PMA100F-24-T	No	Medical	3.66 in	6.61 in	1.34 in	2000 V	86 %	Chassis Mount	4.5 A	24 V	1	Open Frame	CE cURus TUV	70 °C	-10 °C	85 VAC	264 V
Cosel USA, Inc. PMA100F-3R3-N	No	Medical	3.66 in	6.61 in	1.34 in	2000 V	78 %	Chassis Mount	20 A	3.3 V	1	Enclosed	CE cURus TUV	70 °C	-10 °C	85 VAC	264 V
