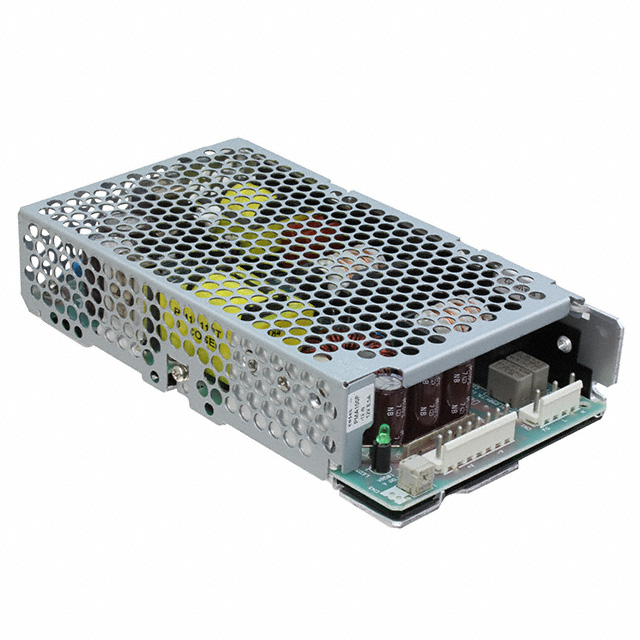

PMA100F-3R3-N

Active

Cosel USA, Inc.

AC-DC REGULATED POWER SUPPLY MODULE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PMA100F-3R3-N

Active

Cosel USA, Inc.

AC-DC REGULATED POWER SUPPLY MODULE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PMA100F-3R3-N

Applications	Medical
Approval Agency	cURus, CE, TUV
Current - Output 1	20 A
Efficiency	78 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Size / Dimension [x]	6.61 in
Size / Dimension [x]	167.9 mm
Size / Dimension [y]	1.34 in
Size / Dimension [y]	34 mm
Size / Dimension [z]	93 mm
Size / Dimension [z]	3.66 in
Type	Enclosed
Voltage - Isolation	2000 V
Voltage - Output 1	3.3 V

PMA100F Series

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Number of Outputs	Current - Output 1	Voltage - Output 1	Type	Mounting Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Isolation	Efficiency	Applications
Cosel USA, Inc. PMA100F-48-R	6.61 in	167.9 mm	1.34 in	93 mm	34 mm	3.66 in	CE cURus TUV	1	2.1 A	48 V	Open Frame	Chassis Mount	-10 °C	158 °F	2000 V	86 %	Medical
Cosel USA, Inc. PMA100F-12-N	6.61 in	167.9 mm	1.34 in	93 mm	34 mm	3.66 in	CE cURus TUV	1		12 V	Enclosed	Chassis Mount	-10 °C	158 °F	2000 V	83 %	Medical
Cosel USA, Inc. PMA100F-24-RN	6.61 in	167.9 mm	1.34 in	93 mm	34 mm	3.66 in	CE cURus TUV	1	4.5 A	24 V	Enclosed	Chassis Mount	-10 °C	158 °F	2000 V	86 %	Medical
Cosel USA, Inc. PMA100F-48-T1N	6.61 in	167.9 mm	1.34 in	93 mm	34 mm	3.66 in	CE cURus TUV	1	2.1 A	48 V	Enclosed	Chassis Mount	-10 °C	158 °F	2000 V	86 %	Medical
Cosel USA, Inc. PMA100F-12-TN	6.61 in	167.9 mm	1.34 in	93 mm	34 mm	3.66 in	CE cURus TUV	1		12 V	Enclosed	Chassis Mount	-10 °C	158 °F	2000 V	83 %	Medical
Cosel USA, Inc. PMA100F-24-R	6.61 in	167.9 mm	1.34 in	93 mm	34 mm	3.66 in	CE cURus TUV	1	4.5 A	24 V	Open Frame	Chassis Mount	-10 °C	158 °F	2000 V	86 %	Medical
Cosel USA, Inc. PMA100F-24-T	6.61 in	167.9 mm	1.34 in	93 mm	34 mm	3.66 in	CE cURus TUV	1	4.5 A	24 V	Open Frame	Chassis Mount	-10 °C	158 °F	2000 V	86 %	Medical
Cosel USA, Inc. PMA100F-3R3-N	6.61 in	167.9 mm	1.34 in	93 mm	34 mm	3.66 in	CE cURus TUV	1	20 A	3.3 V	Enclosed	Chassis Mount	-10 °C	158 °F	2000 V	78 %	Medical
Cosel USA, Inc. PMA100F-12-T1N	6.61 in	167.9 mm	1.34 in	93 mm	34 mm	3.66 in	CE cURus TUV	1		12 V	Enclosed	Chassis Mount	-10 °C	158 °F	2000 V	83 %	Medical
Cosel USA, Inc. PMA100F-48-RN	6.61 in	167.9 mm	1.34 in	93 mm	34 mm	3.66 in	CE cURus TUV	1	2.1 A	48 V	Enclosed	Chassis Mount	-10 °C	158 °F	2000 V	86 %	Medical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 153.05

Description

General part information

PMA100F Series

Enclosed AC DC Converters 1 Output 3.3V 85 ~ 264 VAC Input
